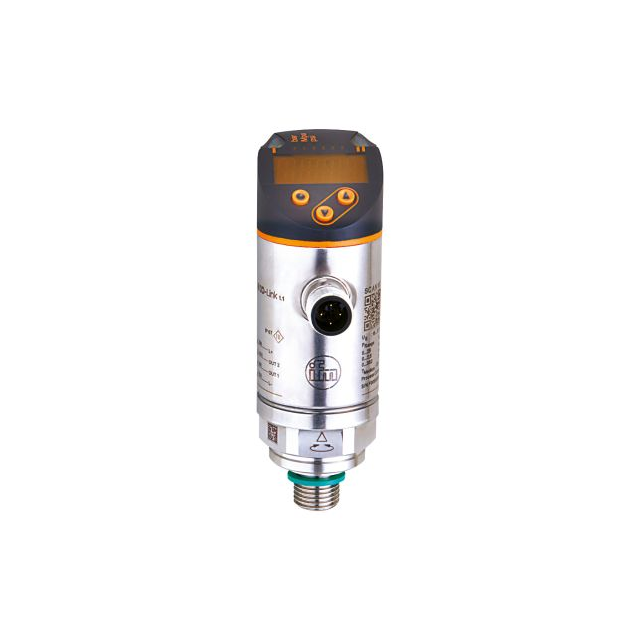

PN7597 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PN7597
- Description：SENSOR 14.5PSI 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：14.5PSI (100kPa)
- Output Type：NPN/PNP- NC/NO
- Output：-
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 30V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：435.11PSI (3000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PN7597
Pressure Sensors Transducers Overview
The PN7597 is a pressure sensor manufactured by ifm efector, inc., designed for industrial automation applications. It features a male process connection with a size of 1/4 inch (6.35mm) BSPP thread. The device has a pressure range of 14.5 PSI (100 kPa). It utilizes an M12 connector interface for electrical connectivity. The sensor is built as a module suitable for integration into hydraulic and pneumatic systems. It provides reliable monitoring capabilities within the specified pressure limits.
Pressure Sensors Transducers Feature Summary
- Features a male 1/4 inch BSPP process connection for secure mounting in fluid systems.
- Designed specifically for use in hydraulic and pneumatic application environments.
- Incorporates an M12 connector interface to facilitate standard industrial signal transmission.
Pressure Sensors Transducers Applications
- Hydraulic system monitoring
- Pneumatic circuit control
- Industrial automation machinery
Pressure Sensors Transducers Procurement Notes
Verify that the required process connection matches the 1/4 inch BSPP specification. Confirm the operating pressure does not exceed the 14.5 PSI limit. Ensure the M12 connector type aligns with existing control panel wiring standards. Check environmental compatibility for the intended installation location.
Pressure Sensors Transducers Selection Notes
Select this model when a compact pressure module is needed for low-pressure ranges up to 100 kPa. The BSPP thread requires compatible fittings for proper sealing. Consider the M12 interface for easy integration with standard ifm controllers or PLCs. Evaluate space constraints as it is a modular design.
Pressure Sensors Transducers Part Context
This component belongs to ifm's portfolio of industrial sensors and controls. The manufacturer specializes in devices that improve Overall Equipment Effectiveness through real-time data access. The product line supports predictive maintenance and process control improvements in various manufacturing sectors.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify exact thread type and pressure rating before considering alternative brands or models.
