PN7599 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1/4". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PN7599
- Description：SENSOR 14.5PSI 1/4"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Vacuum
- Operating Pressure：-14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa)
- Output Type：NPN/PNP- NC/NO
- Output：-
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 30V
- Port Size：Male - 1/4" (6.35mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M12, 4 Pin
- Maximum Pressure：435.11PSI (3000kPa)
- Operating Temperature：-25°C ~ 80°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PN7599
Pressure Sensors Transducers Overview

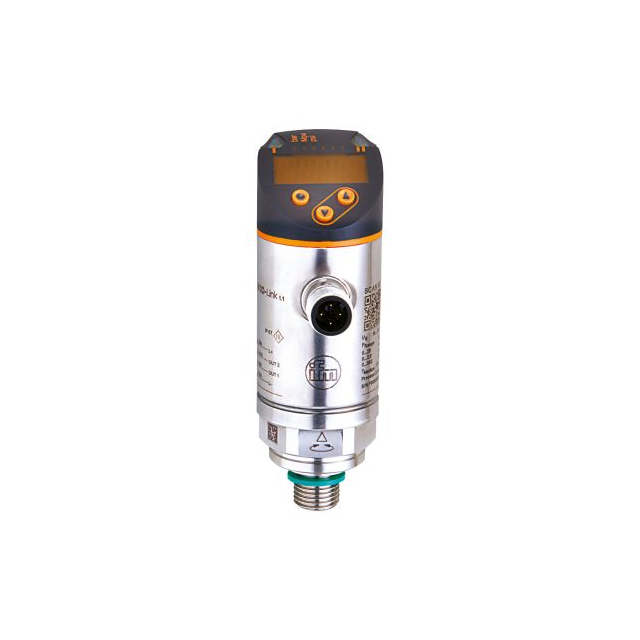

The PN7599 is an electronic pressure sensor manufactured by ifm efector, inc. designed for industrial applications. It features a measurement range of -14.5 PSI to 14.5 PSI (-100 kPa to 100 kPa). The device utilizes a male 1/4 inch (6.35 mm) BSPP process connection. It includes a black display with white printed specifications and provides two programmable switching outputs for signal transmission.
Pressure Sensors Transducers Feature Summary
- Features a black display with white printed specifications for clear status indication
- Includes two programmable switching outputs for flexible signal configuration
- Operates within a pressure range of -1 bar to 1 bar
Pressure Sensors Transducers Applications
- Monitoring system pressure in hydraulic power units
- Integration into mobile equipment such as excavators and wheel loaders
- Industrial automation systems requiring precise vacuum or low-pressure measurement
Pressure Sensors Transducers Procurement Notes
Verify the specific process connection type and thread standard against the application requirements before ordering. Confirm that the operating pressure range aligns with the system's maximum expected pressure. Ensure compatibility with the control system's switching output requirements. Check for any specific environmental certifications needed for the installation site. Review the manufacturer's warranty terms regarding material and workmanship defects.
Pressure Sensors Transducers Selection Notes
Select this model when a compact pressure sensor with integrated display and dual switching outputs is required. Consider the BSPP thread size for compatibility with existing piping systems. Evaluate the -100 kPa to 100 kPa range suitability for the specific medium being measured. Assess the need for programmable outputs to simplify wiring and control logic. Compare with other ifm sensors if higher pressure ranges or different thread standards are necessary.
Pressure Sensors Transducers Part Context
The PN7599 belongs to ifm's portfolio of electronic pressure sensors designed for industrial automation. It supports monitoring hydraulic systems and mobile machinery. The product line emphasizes ease of use through programmable features and visual feedback. ifm sensors typically integrate with IO-Link masters for enhanced data access in modern manufacturing environments.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official ifm catalogs for cross-referencing similar models with compatible thread standards and pressure ranges.
