PPD-C018GL1B

Antennas RF Overview

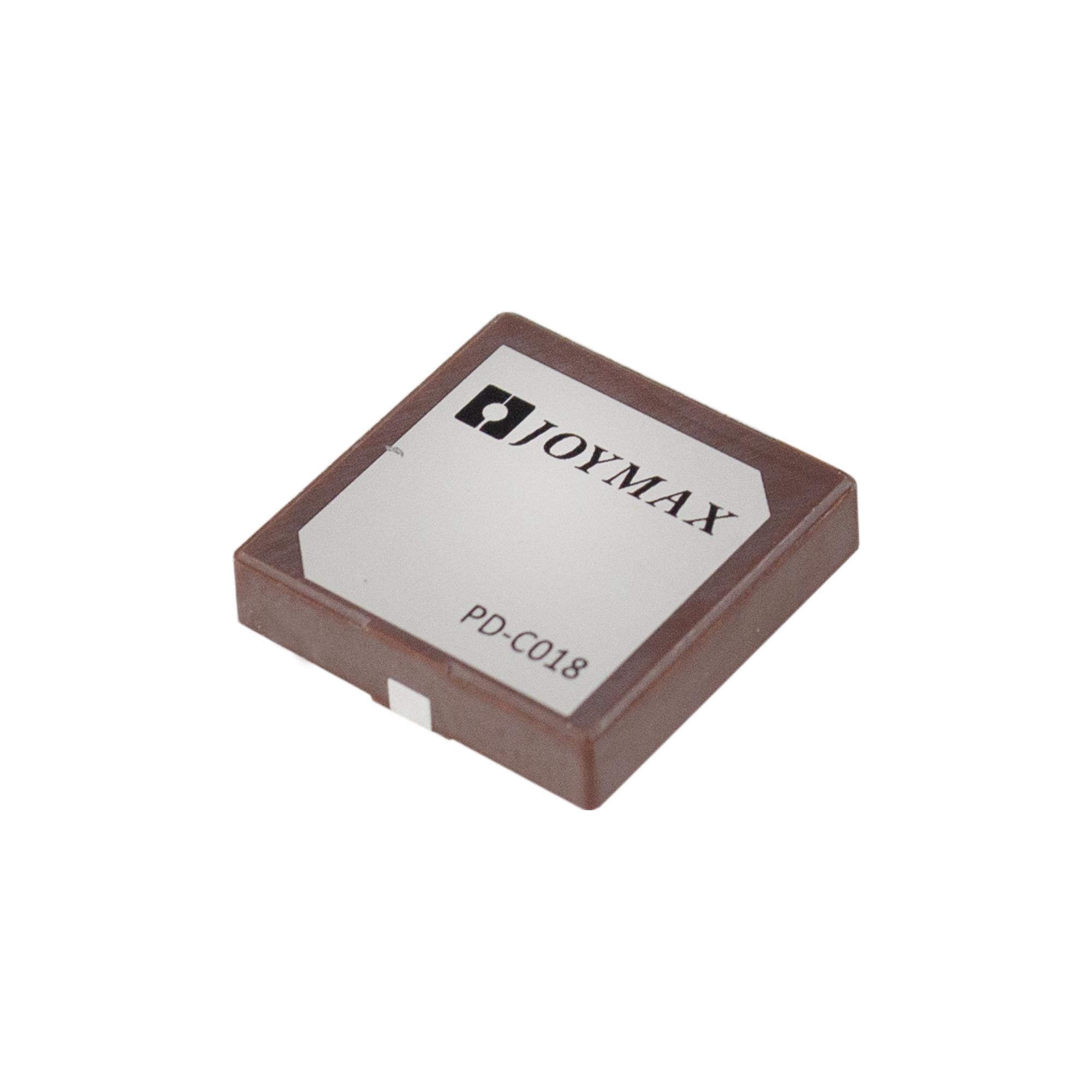

The Joymax Electronics PPD-C018GL1B is a ceramic patch antenna designed for Global Navigation Satellite System (GNSS) applications. It operates across three specific frequency bands: 1.559GHz to 1.563GHz, 1.565GHz to 1.586GHz, and 1.596GHz to 1.608GHz. The center frequencies are 1.575GHz and 1.602GHz. This surface-mount device features Right-Hand Circular Polarization (RHCP) and is housed in an 18x18mm footprint.

Antennas RF Feature Summary

• Supports multiple GNSS constellations including GPS, GLONASS, Galileo, BeiDou, and QZSS
• Utilizes a ceramic patch construction for embedded or internal installation
• Features Right-Hand Circular Polarization for reliable signal reception

Antennas RF Applications

• GPS navigation systems
• GLONASS positioning modules
• Galileo receiver integration
• BeiDou tracking devices
• QZSS compatible equipment

Antennas RF Procurement Notes

Verify the specific datasheet version provided by the manufacturer or authorized distributor to ensure compliance with current RoHS standards and material specifications. Confirm that the soldering profile matches the thermal requirements for surface-mount ceramic components to prevent damage during assembly. Cross-reference the part number suffixes if available to ensure exact dimensional and electrical alignment with design requirements.

Antennas RF Selection Notes

Select this component when a compact, low-profile solution is required for multi-constellation GNSS reception. The 18x18mm size suits space-constrained PCB layouts. Ensure the host circuit supports the necessary impedance matching for the specified frequency bands. Consider the RHCP requirement of the application to guarantee optimal polarization alignment with satellite signals.

Antennas RF Part Context

This model belongs to Joymax Electronics' line of RF antennas, specifically targeting the GNSS sector. It complements other products like the PPX-095ANF4W and PPF-6030SA4B active dome antennas but offers a passive, surface-mount alternative for internal embedding rather than external panel mounting.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are documented. Evaluate alternatives based on identical frequency band coverage, RHCP characteristics, and physical dimensions. Verify compatibility with existing PCB footprints and soldering processes before considering any cross-brand substitution.
