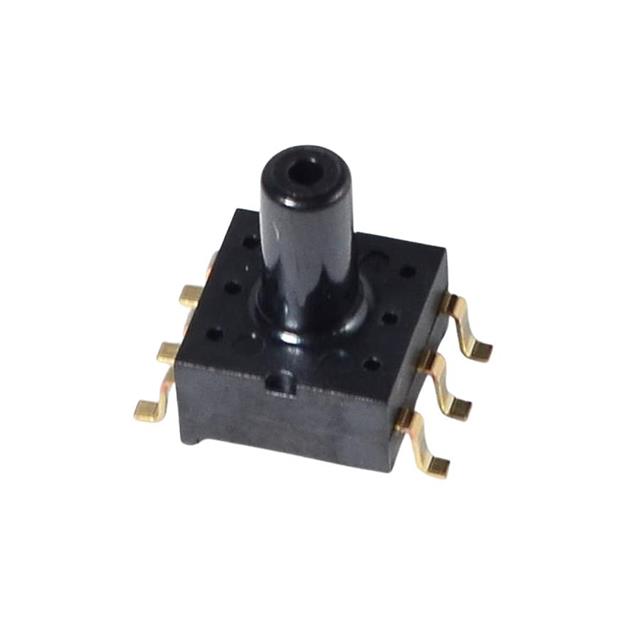

PPS34-1-5G11

$35.10

Description：Pressure Sensor, 5PSIG, 0.12"
Series：PPS34
Mfr：Phoenix Sensors
Package：Tube

SKU:376ad3be6a8b Category: Pressure Sensors, Transducers Brand: Phoenix Sensors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PPS34-1-5G11 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Phoenix Sensors. Its product description is Pressure Sensor, 5PSIG, 0.12". Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PPS34-1-5G11

Description：Pressure Sensor, 5PSIG, 0.12"
Series：PPS34
Mfr：Phoenix Sensors
Package：Tube
Applications：Board Level
Pressure Type：Gauge
Operating Pressure：-14.69PSI ~ 5PSI (-101.3kPa ~ 34.47kPa)
Output Type：I2C
Output：14 b
Accuracy：±0.5%
Voltage - Supply：2.5V ~ 3.6V
Port Size：Male - 0.12" (3mm) Tube
Port Style：Barbless
Features：Temperature Compensated
Termination Style：Gull Wing
Maximum Pressure：7.5PSI (51.71kPa)
Operating Temperature：-40°C ~ 85°C
Mounting Type：-
Package / Case：6-SMD, Gull Wing, Top Port
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PPS34-1-5G11

PPS34-1-5G11

Pressure Sensors Transducers Overview

The PPS34-1-5G11 is a compact gauge pressure sensor from Phoenix Sensors, designed for board-level applications requiring precise pressure monitoring. It features an I2C digital output with 14-bit resolution and ±0.5% accuracy. The device operates on a supply voltage of 2.5V to 3.6V and covers a measurement range of -14.69 PSI to 5 PSI (-101.3 kPa to 34.47 kPa). It utilizes a male port size of 0.12 inches (3mm) tube connection. The sensor is housed in a 6-SMD, Gull Wing package and supports an operating temperature range of -40°C to +85°C with a response time of 1.5ms.

Pressure Sensors Transducers Feature Summary

Digital I2C interface for direct microcontroller integration
High accuracy gauge pressure sensing capability
Compact surface-mount package design

Pressure Sensors Transducers Applications

Board-level pressure monitoring systems
Industrial automation control units
Medical device instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against official Phoenix Sensors documentation to ensure correct port style and electrical specifications. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference the part number with authorized distributors to validate authenticity and lifecycle status before procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a digital I2C interface is required for space-constrained designs. Ensure the system power supply aligns with the 2.5V to 3.6V operational range. Verify that the gauge pressure range meets application requirements without exceeding maximum limits.

Pressure Sensors Transducers Part Context

This model belongs to the PPS34 series of pressure sensors manufactured by Phoenix Sensors. The series focuses on providing reliable OEM solutions for various industrial and commercial markets. The PPS34-1-5G11 variant specifically addresses needs for digital output and precise gauge measurements in compact form factors.
