PPTA-3

Pressure Sensors Transducers Overview

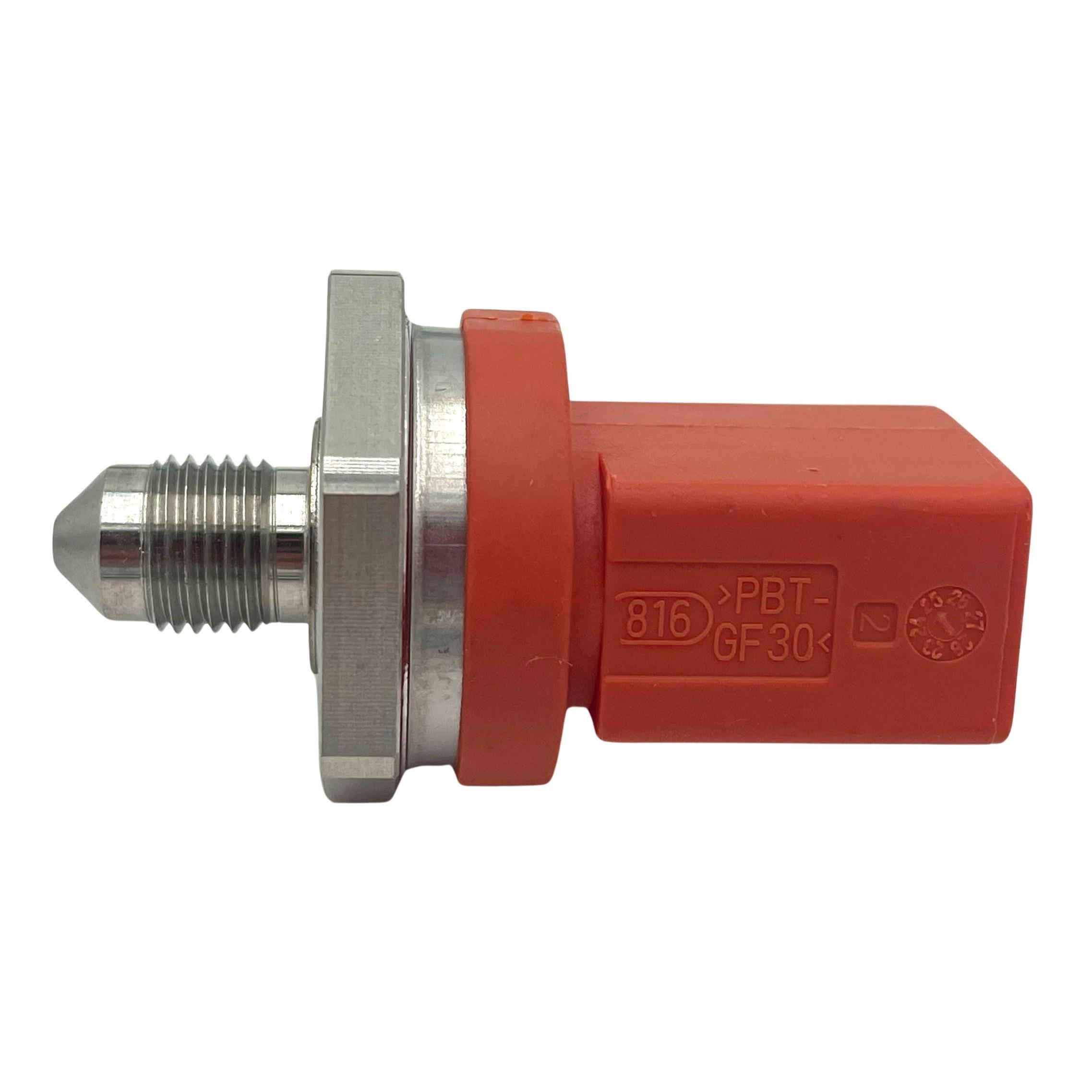

The Phoenix Sensors PPTA-3 is a gauge pressure sensor designed for industrial applications. It features an analog voltage output ranging from 0.5 V to 4.5 V. The device supports an operating pressure of 2900.75 PSI (20000 kPa). It utilizes a male M10 x 1.0 connection interface. The sensor operates within a temperature range of -40 °C to 140 °C and includes a 3-pin overall connector.

Pressure Sensors Transducers Feature Summary

• Provides analog voltage signal output for pressure measurement
• Features hermetically sealed construction for durability
• Includes integrated LED status indication
• Supports high-pressure gauge measurement capabilities

Pressure Sensors Transducers Applications

• Industrial automation systems
• Process monitoring and control
• Hydraulic and pneumatic equipment

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix to confirm the exact cable length, connector type, and process connection details required for your installation. Ensure the supply voltage matches the sensor's operational requirements. Confirm that the pressure rating aligns with the maximum system pressure to prevent damage. Check compatibility with existing mounting hardware and electrical interfaces before finalizing the purchase order.

Pressure Sensors Transducers Selection Notes

Select this model when a robust gauge pressure sensor with analog voltage output is required for industrial environments. Consider the M10 x 1.0 thread size for compatibility with standard fittings. Evaluate the operating temperature range against environmental conditions. Compare performance specifications with alternative models in the PPT series if different accuracy or output types are needed.

Pressure Sensors Transducers Part Context

The PPTA-3 belongs to the Phoenix Sensors PPT series, which offers a range of industrial pressure transducers. This series includes various options from low-cost analog outputs to high-accuracy hermetically sealed units. The PPTA-3 specifically addresses applications requiring reliable pressure measurement with a standardized analog interface and durable mechanical design for harsh industrial settings.

Pressure Sensors Transducers Replacement Considerations

Check for direct substitutes within the PPT series such as the PPTA-4, ensuring identical thread size, output range, and pressure rating. Verify that any replacement part maintains the same electrical characteristics and physical dimensions for seamless integration into existing systems without modification.
