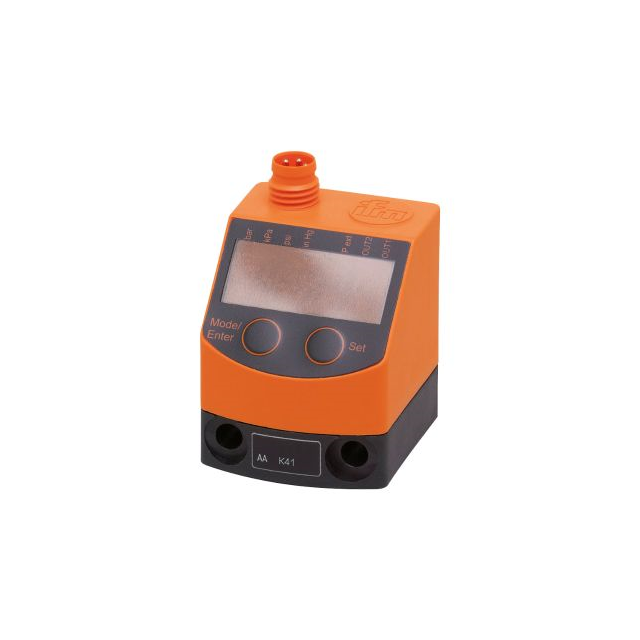

PQ3809 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1/8" .02A. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PQ3809
- Description：SENSOR 14.5PSI 1/8" .02A
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Vacuum
- Operating Pressure：-14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa)
- Output Type：Analog Current, PNP- NC/NO
- Output：4 mA ~ 20 mA
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 32V
- Port Size：Female - 1/8" (3.18mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M8
- Maximum Pressure：435.11PSI (3000kPa)
- Operating Temperature：0°C ~ 70°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PQ3809
Pressure Sensors Transducers Overview
The PQ3809 is a pneumatic pressure sensor manufactured by ifm efector, inc. It features a DC current output signal ranging from 4 mA to 20 mA. The measurement range covers -14.5 PSI to 14.5 PSI (-100 kPa to 100 kPa). The process connection is a female 1/8 inch (3.18 mm) BSPP thread. The device includes a two-color LED display for visualizing process values and acceptable ranges.
Pressure Sensors Transducers Feature Summary
- Two-color LED display for clear identification of acceptable process value ranges
- Integrated mounting holes facilitate easy installation
- Dual output configuration with both analog and programmable switch capabilities
Pressure Sensors Transducers Applications
- Pneumatic system monitoring
- Compressed air control
- Filter monitoring and condition-based maintenance
- Leak detection via pressure loss analysis
Pressure Sensors Transducers Procurement Notes
Verify the specific process connection thread size and electrical output requirements against the application specifications before ordering. Confirm that the supply voltage and signal type are compatible with the existing control system infrastructure. Ensure the operating temperature and pressure limits align with the intended industrial environment to guarantee reliable performance.
Pressure Sensors Transducers Selection Notes
Select this model for applications requiring precise relative or differential pressure measurements in pneumatics. The integrated display aids in quick setup and diagnostics. Consider the BSPP thread compatibility for piping systems. The dual output allows for flexible integration into various automation architectures without additional signal converters.
Pressure Sensors Transducers Part Context
The PQ3809 belongs to ifm's extensive portfolio of industrial sensors designed to enhance Overall Equipment Effectiveness. It supports predictive maintenance strategies by providing real-time data on system health. The product line emphasizes connectivity and ease of use, helping manufacturers improve process control and machine safety through accurate sensing technology.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify compatibility with existing mounting hardware and wiring configurations when considering alternative models from other manufacturers.
