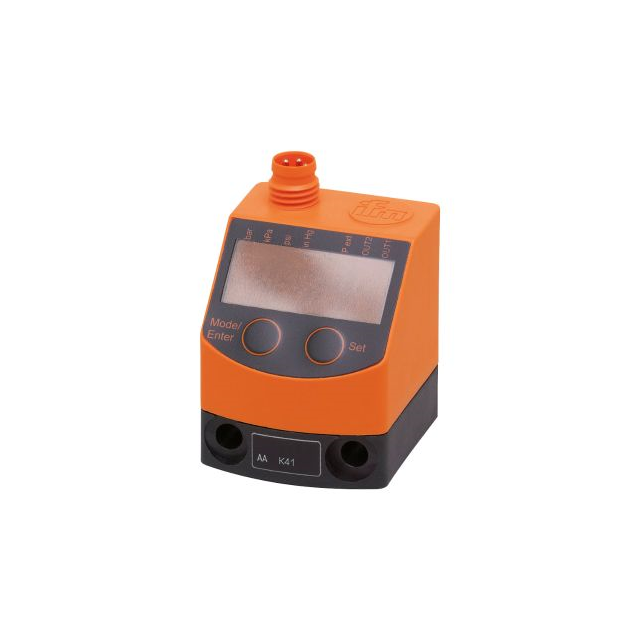

PQ7809 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists ifm efector, inc.. Its product description is SENSOR 14.5PSI 1/8". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PQ7809
- Description：SENSOR 14.5PSI 1/8"
- Series：-
- Mfr：ifm efector, inc.
- Package：Box
- Applications：-
- Pressure Type：Vacuum
- Operating Pressure：-14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa)
- Output Type：PNP- NC/NO
- Output：-
- Accuracy：±0.5%
- Voltage - Supply：18V ~ 32V
- Port Size：Female - 1/8" (3.18mm) BSPP
- Port Style：Threaded
- Features：-
- Termination Style：M8
- Maximum Pressure：435.11PSI (3000kPa)
- Operating Temperature：0°C ~ 70°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PQ7809
Pressure Sensors Transducers Overview
The PQ7809 is a precision pressure sensor from the ifm PQ series, designed for pneumatics and compressed air systems. It features a measurement range of -1 to 1 bar (-100 kPa). The device operates on an 18-32 VDC supply voltage and includes two digital outputs with M8 connector interface. It offers IP65 ingress protection and functions within a temperature range of 0°C to 60°C.
Pressure Sensors Transducers Feature Summary
- Features a user-friendly interface with a color TFT display for real-time process value visualization and parameter configuration.
- Provides high accuracy with coated silicone measuring elements resistant to humidity and condensation.
- Supports IO-Link connectivity for advanced diagnostics, condition monitoring, and IIoT integration.
Pressure Sensors Transducers Applications
- Pneumatic system monitoring
- Compressed air control
- Filter monitoring and leak detection
Pressure Sensors Transducers Procurement Notes
Verify the specific thread size (G 1/8) and coding (A Coding) required for your installation. Confirm that the operating voltage range of 18-32 VDC matches your PLC or controller output. Ensure the IP65 rating meets the environmental conditions of the deployment site. Cross-reference the M8 connector type with existing cabling infrastructure to guarantee physical compatibility.
Pressure Sensors Transducers Selection Notes
Select this model for applications requiring precise vacuum and low-pressure measurement up to 1 bar. Choose the PQ7809 over higher-range models when exact resolution in the negative pressure zone is critical. Consider the integrated display for manual setup without external tools. Evaluate the dual digital outputs for simple threshold-based switching logic in pneumatic circuits.
Pressure Sensors Transducers Part Context
The PQ7809 belongs to the PQ series of precision pressure monitors by ifm electronic. This series is engineered for industrial automation, focusing on reliability and ease of use. The component represents ifm's strategy to provide smart sensors with built-in intelligence for predictive maintenance and process optimization in manufacturing environments.
Pressure Sensors Transducers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and signal wiring before considering alternative models from other manufacturers.
