PR1KC647

Antennas RF Overview

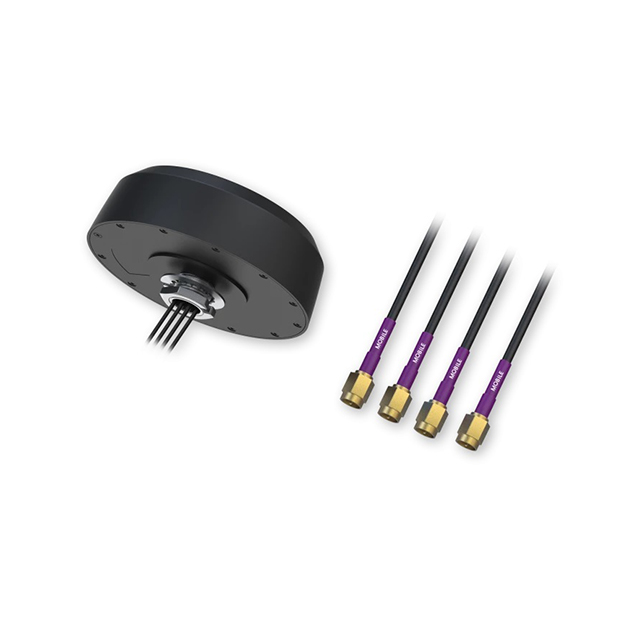

The Teltonika PR1KC647 is a 5G Combo MIMO mobile roof antenna designed for cellular and GNSS applications. It operates within a frequency range of 600 MHz to 5 GHz, featuring gains of 2 dBi and 4 dBi with an impedance of 50 Ohms. The unit exhibits VSWR values of 2.5 and 2, supporting four bands. Physical dimensions are 190.5 mm in length, 100 mm in width, and 36 mm in height. It utilizes an SMA-Male connector and LMR100 cable type with a length of 3 m. The device maintains an IP67 rating and functions between -40 C and +80 C.

Antennas RF Feature Summary

• Integrates four antennas into a single ruggedized low-profile housing for MuMiMo 4x4 performance
• Provides stable connectivity for demanding outdoor environments with waterproof construction
• Supports seamless integration with Teltonika routers and other LTE/5G devices

Antennas RF Applications

• Cellular-only vehicle roof mount installations
• Teltonika 5G router connectivity enhancement
• Outdoor IoT networking solutions requiring reliable 5G coverage

Antennas RF Procurement Notes

Verify the specific part number suffix against official Teltonika documentation to ensure correct configuration. Confirm that the SMA-Male termination matches your device interface requirements. Check current availability status as supply chain conditions may affect immediate delivery. Ensure compatibility with your existing LTE/5G gateway or router model before finalizing the purchase order.

Antennas RF Selection Notes

Select this component when a low-profile, multi-band solution is required for mobile platforms. The integrated MuMiMo 4x4 design maximizes throughput compared to single-element alternatives. Consider the IP67 rating for harsh environmental exposure. Verify that the 3-meter cable length suits your installation geometry without requiring additional extensions.

Antennas RF Part Context

This model belongs to Teltonika's portfolio of cellular antennas and accessories. It complements their range of LTE routers, gateways, and modems designed for industrial and transportation sectors. The product supports the company's focus on providing robust remote management systems and secure connectivity hardware for enterprise and utility applications.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Teltonika technical support for direct equivalents or updated models within the same product family.
