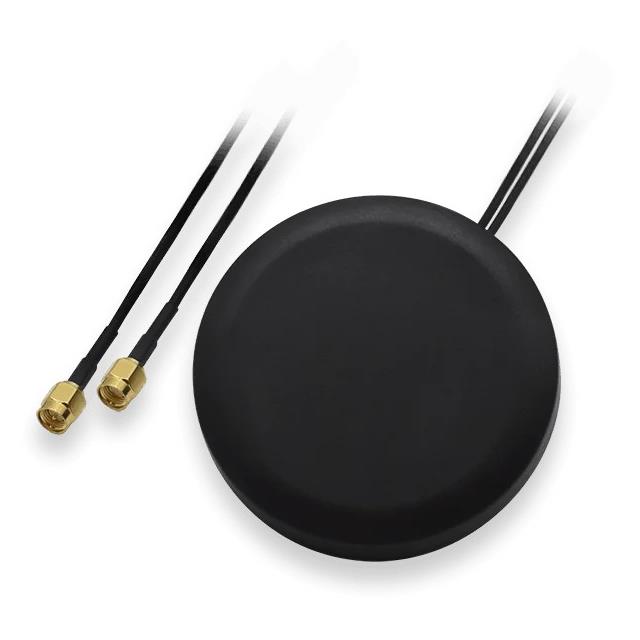

PR1KCL25

$15.95

Description：COMBO MIMO MOBILE ROOF SMA ANTEN
Series：-
Mfr：Teltonika
Package：Box

SKU:aff274613c66 Category: RF Antennas Brand: Teltonika

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PR1KCL25 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Teltonika. Its product description is COMBO MIMO MOBILE ROOF SMA ANTEN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PR1KCL25

Description：COMBO MIMO MOBILE ROOF SMA ANTEN
Series：-
Mfr：Teltonika
Package：Box
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type：Dome
Number of Bands：2
VSWR：3
Return Loss：-
Gain：2.5dBi
Features：Cable - 3m
Termination：SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Screw
Height (Max)：0.575" (14.60mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for PR1KCL25

PR1KCL25

Antennas RF Overview

The Teltonika PR1KCL25 is a Combo MIMO mobile roof antenna designed for LTE connectivity. It operates in two frequency bands: 698MHz ~ 960MHz and 1.71GHz ~ 2.69GHz, with center frequencies at 829MHz and 2.2GHz. The antenna provides a main gain of 2.5dBi and an auxiliary gain of 2.0dBi. It features a VSWR of less than 3.0 and a 50 Ω impedance. The unit includes a 3m cable terminated with an SMA male connector. It has a maximum height of 14.60mm (0.575 inches) and offers IP65 ingress protection.

Antennas RF Feature Summary

Supports 2x2 MIMO technology for enhanced signal stability
Low profile dome design suitable for mobile roof mounting
IP65 rated for reliable operation in diverse environments

Antennas RF Applications

Mobile vehicle LTE connectivity solutions
IoT applications requiring robust wireless performance
General purpose ISM band communications

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure correct cable length and connector type compatibility with your system requirements. Confirm that the SMA male termination matches your device interface. Check RoHS3 compliance status if environmental regulations apply to your deployment. Ensure the mounting method aligns with the screw installation specification provided in the official documentation.

Antennas RF Selection Notes

Select this model when dual-band LTE coverage across 698-960MHz and 1.71-2.69GHz is required. The low profile height makes it suitable for vehicles with limited clearance. Consider the 3m pre-terminated cable for simplified installation. Verify that the IP65 rating meets the environmental exposure conditions of the intended installation site.

Antennas RF Part Context

This component belongs to the Teltonika PR1K series of Combo MIMO antennas. It is specifically engineered for mobile applications where space constraints and weather resistance are critical factors. The product integrates multiple frequency bands into a single compact unit to support modern LTE networks without requiring multiple separate antennas.
