PR1KCS28

Antennas RF Overview

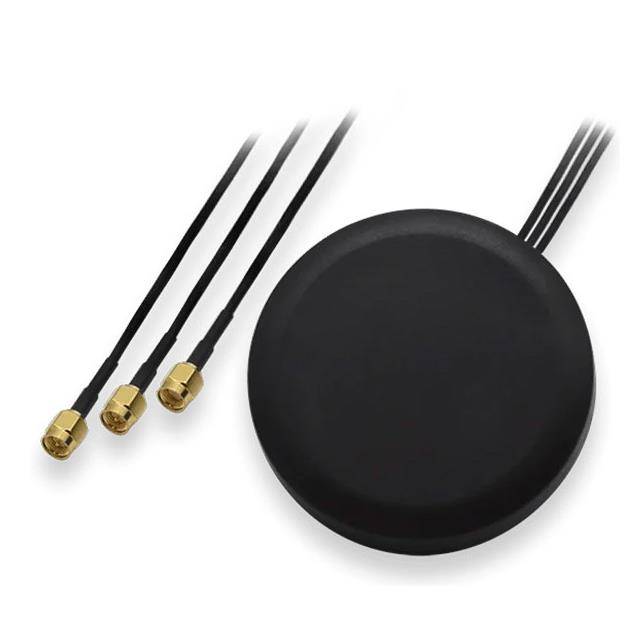

The Teltonika PR1KCS28 is a Combo SISO Mobile/GNSS/WiFi Roof SMA antenna designed for multi-network connectivity. It supports mobile frequencies with 3.5 dBi gain, GNSS at 1575.42-1610 MHz with 28 dB gain, and WiFi with 2.5 dBi gain. The unit features a 50 Ohm impedance, IP67 rating, and an SMA connector. Dimensions are 28 cm length, 19 cm width, and 10 cm height. Cable length is 3 meters.

Antennas RF Feature Summary

• Combines mobile, GNSS, and WiFi reception in a single compact roof-mounted unit
• IP67 certified for robust environmental protection
• Supports linear polarization for stable signal transmission

Antennas RF Applications

• Vehicle tracking and telematics
• Motorhome and RV connectivity
• IoT gateway installations

Antennas RF Procurement Notes

Verify the specific frequency bands required by your target network operators against the product specifications before ordering. Confirm that the SMA connector type matches the receiving equipment interface. Ensure the mounting location provides adequate clearance for optimal signal reception across all supported bands.

Antennas RF Selection Notes

Select this model when a single integrated solution for cellular, positioning, and wireless data is required. It is suitable for applications where space constraints prevent separate antenna installations. Consider the IP67 rating for outdoor or harsh environment deployments requiring durable weather resistance.

Antennas RF Part Context

This component belongs to Teltonika's lineup of combo antennas designed for IoT and vehicle tracking. It integrates multiple radio technologies into one housing, simplifying installation compared to using individual dedicated antennas for each function while maintaining performance standards for each band.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing cabling and connectors if replacing legacy models.
