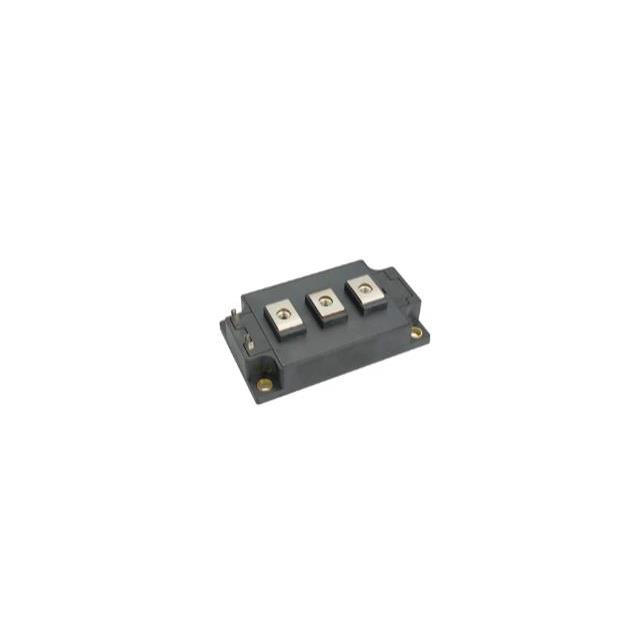

PRFMB200W12

$73.36

Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
Series：-

SKU:8b7f1a3d8662 Category: IGBT Modules Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
Series：-
Mfr：KYOCERA AVX
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：200 A
Power - Max：961 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：19000 pF @ 25 V

Download product information

PRFMB200W12

Overview

The PRFMB200W12 is a single IGBT module manufactured by KYOCERA AVX, designed for high-power switching applications. It features a silicon technology construction with a maximum collector-emitter voltage (VCEO) of 1200 VDC and a continuous collector current rating of 200 A at 25°C. The device integrates a Fast Recovery Diode (FRD) within a 1-in-1 chopper circuit configuration. Key electrical parameters include a collector-emitter saturation voltage of 1.45 V and a gate-emitter leakage current of 1 µA. The module supports a maximum operating temperature of +150°C and utilizes screw mount installation.

Feature Summary

Integrates an IGBT and FRD in a single 1-in-1 chopper circuit topology
Engineered for high-voltage DC applications up to 1200 V
Supports high-current switching with a 200 A continuous rating
Utilizes robust silicon technology for thermal stability

Applications

Industrial motor drives and inverters
High-power DC power supply systems
Chopper circuits for traction and railway applications

Procurement Notes

This component is officially listed as End-of-Life (EOL). Verification of final availability through authorized distributors is required before procurement planning. Due to the discontinued status, lead times are indefinite, and direct replacement sourcing is necessary for ongoing production needs.

Selection Notes

Select this module for applications requiring a combined IGBT and FRD solution in a compact chassis-mount form factor. Ensure the design accommodates the 94 mm x 35 mm x 30 mm package dimensions and screw mounting requirements. Verify that the system can handle the specified 1.45 V saturation voltage drop and thermal dissipation limits at the intended operating temperatures.

Part Context

The PRFMB200W12 belongs to the KYOCERA AVX IGBT Modules product line, specifically engineered for high-power industrial electronics. It represents a discrete power semiconductor solution combining switching and freewheeling capabilities. This series targets demanding environments where reliability and high voltage isolation are critical for system performance.
