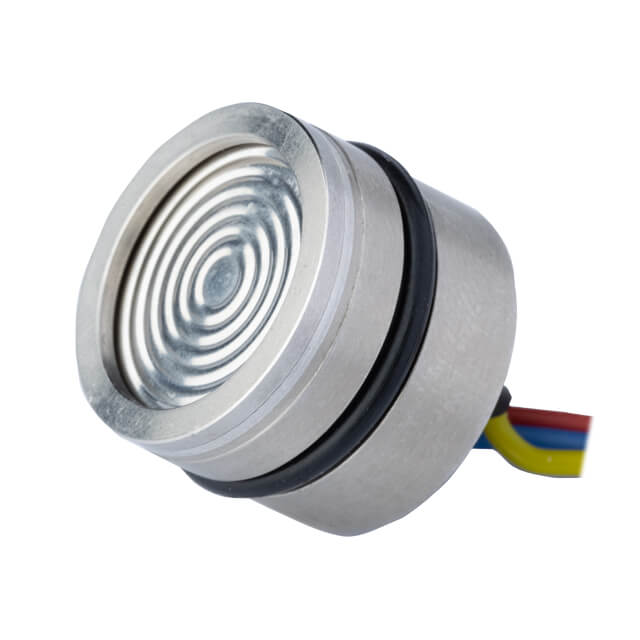

PS01-G250KP-3W is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is SENSOR 36.26PSIG 4.5V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PS01-G250KP-3W
- Description：SENSOR 36.26PSIG 4.5V
- Series：PS01
- Mfr：Same Sky (Formerly CUI Devices)
- Package：Box
- Applications：-
- Pressure Type：Gauge
- Operating Pressure：36.26PSI (250kPa)
- Output Type：Analog Voltage
- Output：0.5 V ~ 4.5 V
- Accuracy：±0.5%
- Voltage - Supply：4.5V ~ 5.5V
- Port Size：-
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：Wire Leads
- Maximum Pressure：72.52PSI (500kPa)
- Operating Temperature：-40°C ~ 105°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PS01-G250KP-3W
Pressure Sensors Transducers Overview
The PS01-G250KP-3W is a board-mount pressure sensor manufactured by Same Sky. It features a gauge pressure type with a working pressure of 250 kPa. The device provides an analog output and operates within a temperature range of -40°C to +125°C. It utilizes a 3-wire interface and requires a 10V excitation voltage. The unit weighs 28 grams and is packaged in bulk.
Pressure Sensors Transducers Feature Summary
- Provides ratiometric analog output for precise pressure measurement
- Designed for direct board mounting applications
- Capable of operation in extreme temperatures from -40°C to +125°C
Pressure Sensors Transducers Applications
- Industrial process control systems
- HVAC monitoring equipment
- Automotive air intake sensing
Pressure Sensors Transducers Procurement Notes
Verify the specific manufacturer datasheet for the PS01-G250KP-3W to confirm pinout configurations and electrical tolerances before integration. Ensure that the supply voltage matches the required 10V excitation specification. Check RoHS compliance documentation for regulatory adherence in target markets. Confirm mechanical dimensions against PCB layout constraints.
Pressure Sensors Transducers Selection Notes
Select this component when a gauge pressure sensor with a 250 kPa range is required. The 3-wire configuration simplifies circuit design compared to 4-wire variants. Consider the operating temperature range if the environment exceeds standard limits. Evaluate the analog output compatibility with downstream signal conditioning circuits.
Pressure Sensors Transducers Part Context
This part belongs to the Same Sky board-mount pressure sensor family. These sensors are designed for compact electronic assemblies requiring reliable pressure data. The product line offers various pressure ranges and interface options to suit different industrial and consumer applications.
Pressure Sensors Transducers Replacement Considerations
Consult official cross-reference lists for verified substitutes. Generic replacements may differ in excitation requirements or output characteristics.
