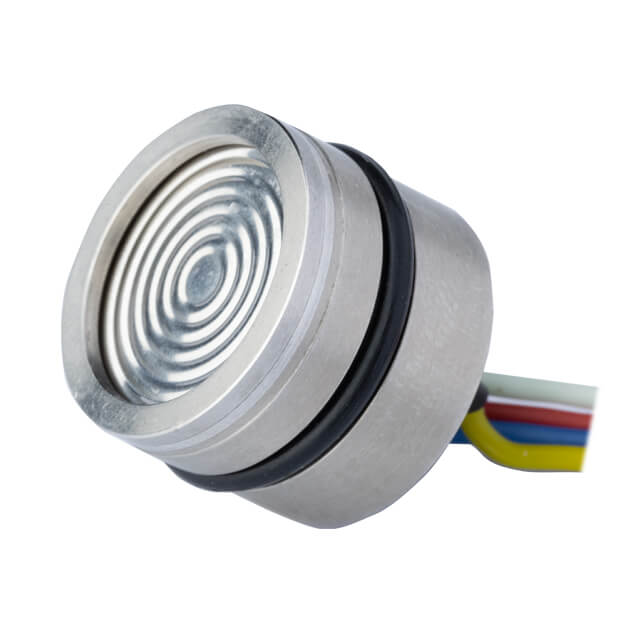

PS03-S250MP-V4W is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is SENSOR 3625.94PSIS .12V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PS03-S250MP-V4W
- Description：SENSOR 3625.94PSIS .12V
- Series：PS03
- Mfr：Same Sky (Formerly CUI Devices)
- Package：Box
- Applications：-
- Pressure Type：Sealed Gauge
- Operating Pressure：3625.94PSI (25000kPa)
- Output Type：Wheatstone Bridge
- Output：80 mV ~ 120 mV
- Accuracy：-
- Voltage - Supply：10V ~ 15V
- Port Size：-
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：Wire Leads
- Maximum Pressure：5438.92PSI (37500kPa)
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PS03-S250MP-V4W
Pressure Sensors Transducers Overview
The PS03-S250MP-V4W is a board-mount pressure sensor manufactured by Same Sky. It features a sealed gauge pressure type with a working pressure range of 25 MPa. The device provides an analog output and operates on a 10 V excitation voltage via a 4-wire interface. Electrical specifications include a maximum supply voltage of 15 V. The sensor is designed for operation within a temperature range of -40°C to +125°C. It is supplied in bulk packaging and weighs approximately 28 grams.
Pressure Sensors Transducers Feature Summary
- Sealed gauge pressure sensing capability
- Analog signal output generation
- High-temperature operational stability
Pressure Sensors Transducers Applications
- Industrial process control systems
- Hydraulic system monitoring
- Pneumatic equipment diagnostics
Pressure Sensors Transducers Procurement Notes
Verify the specific sealed gauge configuration and 25 MPa rating against application requirements. Confirm compatibility with 10V excitation sources and analog input interfaces. Ensure environmental conditions remain within the specified -40°C to +125°C operating range. Check current availability status as stock levels may vary. Validate package type and mounting requirements prior to ordering.
Pressure Sensors Transducers Selection Notes
Select this component when high-pressure sealed gauge measurement is required. The 25 MPa range suits heavy industrial applications. Analog output requires appropriate signal conditioning circuits. Verify thermal management needs due to the wide operating temperature span. Consider the 4-wire interface complexity versus digital alternatives if I2C or SPI is preferred.
Pressure Sensors Transducers Part Context
This model belongs to the Same Sky board-mount pressure sensor family. It shares common design traits with other PS03 series variants, differing primarily in pressure range and sealing type. The product line focuses on robust industrial sensing solutions. Similar models include PS03-S400MP-V4W for higher pressure ranges.
Pressure Sensors Transducers Replacement Considerations
PS03-S400MP-V4W offers a similar sealed gauge architecture but supports up to 40 MPa. PS03-S25MP-V4W provides a lower 2.5 MPa range with identical form factors. Cross-reference electrical interfaces and mounting dimensions before substitution.
