PS04-G16MP-V4W

Pressure Sensors Transducers Overview

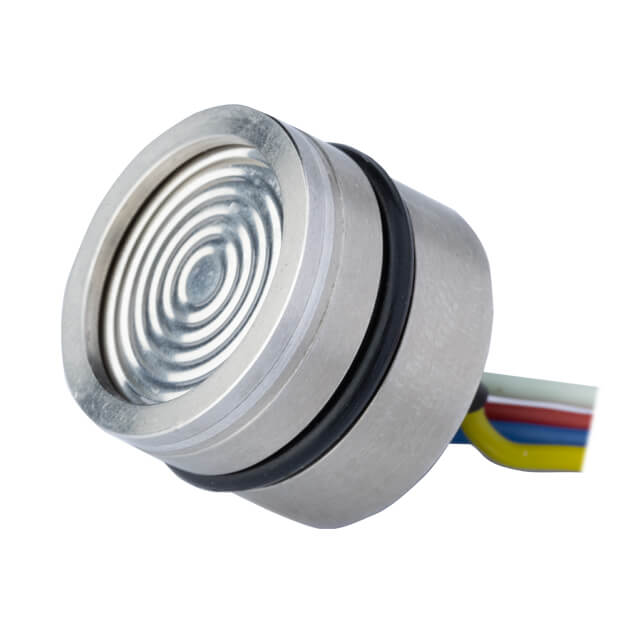

The PS04-G16MP-V4W is a board-mount pressure sensor manufactured by Same Sky. It features a ratiometric analog output and operates with a 10V excitation voltage. The device measures gauge pressure up to 1.6 MPa. It utilizes a four-wire interface for signal transmission. The sensor supports an operating temperature range from -40°C to +125°C. Maximum supply voltage is rated at 15V. Accuracy is specified at 0.2%. The unit weighs 28g and is packaged in bulk.

Pressure Sensors Transducers Feature Summary

• Ratiometric analog output design ensures signal stability relative to the excitation voltage.
• Gauge pressure measurement capability allows for atmospheric reference monitoring.
• Four-wire configuration provides dedicated power and signal lines for precise data acquisition.

Pressure Sensors Transducers Applications

• Industrial hydraulic system monitoring
• Pneumatic control circuit diagnostics
• Automotive engine intake manifold pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific pressure rating of 1.6 MPa against application requirements. Confirm the gauge pressure type matches the system's reference needs. Ensure the 10V excitation voltage aligns with the host controller's output capabilities. Check the operating temperature range for environmental compatibility. Validate the four-wire connection scheme with the target PCB layout.

Pressure Sensors Transducers Selection Notes

Select this component when a ratiometric output is required to minimize supply voltage variations impact. Choose this model for applications needing high accuracy within a 1.6 MPa gauge range. Consider the wide operating temperature range for harsh environments. Evaluate the four-wire interface for complex signal processing needs. Compare physical dimensions and weight constraints against available board space.

Pressure Sensors Transducers Part Context

This part belongs to Same Sky's board-mount pressure sensor series. It is designed for integration into electronic circuits requiring direct pressure data. The product line emphasizes reliability and precision for industrial use cases. The manufacturer provides technical documentation for implementation guidance.

Pressure Sensors Transducers Replacement Considerations

Consult official distributor databases for cross-reference options. Verify pinout compatibility before substituting any alternative components. Ensure electrical specifications match the original design requirements exactly.
