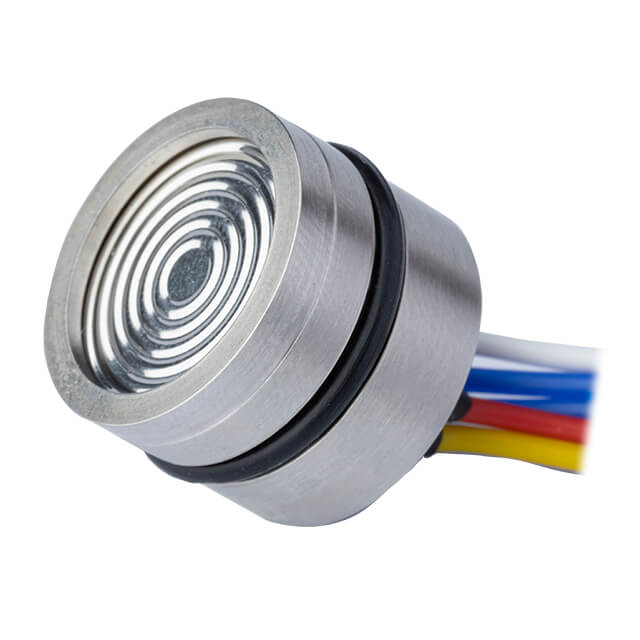

PS05-A100KP-5W

$44.87

Description：SENSOR 14.5PSIA .15V
Series：PS05
Mfr：Same Sky (Formerly CUI Devices)
Package：Box

SKU:0be7de346d98 Category: Pressure Sensors, Transducers Brand: Same Sky (Formerly CUI Devices)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PS05-A100KP-5W is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is SENSOR 14.5PSIA .15V. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PS05-A100KP-5W

Description：SENSOR 14.5PSIA .15V
Series：PS05
Mfr：Same Sky (Formerly CUI Devices)
Package：Box
Applications：-
Pressure Type：Absolute
Operating Pressure：14.5PSI (100kPa)
Output Type：Wheatstone Bridge
Output：60 mV ~ 150 mV
Accuracy：-
Voltage - Supply：-
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：Wire Leads
Maximum Pressure：29.01PSI (200kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PS05-A100KP-5W

PS05-A100KP-5W

Pressure Sensors Transducers Overview

The PS05-A100KP-5W is a board-mount absolute pressure sensor manufactured by Same Sky. It features a gauge output range of 60 mV to 150 mV and operates with a maximum working pressure of 100 kPa (14.5 PSI). The device utilizes a five-wire configuration for ratiometric analog signal output. Designed for through-hole mounting, it functions within an operating temperature range of -40°C to +125°C. The sensor requires a specific excitation current and provides high accuracy for precise pressure measurement applications.

Pressure Sensors Transducers Feature Summary

Provides ratiometric analog voltage output proportional to supply voltage
Engineered for absolute pressure measurement in compact modules
Supports five-wire interface for enhanced signal integrity
Constructed for reliable operation across wide industrial temperature ranges

Pressure Sensors Transducers Applications

HVAC system pressure monitoring
Industrial process control instrumentation
Medical device pneumatic systems
Automotive engine management sensors

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm pinout and electrical characteristics. Ensure compatibility with existing PCB layouts regarding through-hole spacing and module dimensions. Confirm that the required excitation current aligns with the target power supply constraints. Check for updated RoHS compliance certificates prior to final procurement authorization.

Pressure Sensors Transducers Selection Notes

Select this component when absolute pressure sensing is required rather than gauge or differential measurements. The five-wire architecture offers distinct advantages over standard three-wire configurations in noisy environments. Evaluate the 60 mV to 150 mV output span against available amplifier input ranges. Consider the thermal stability requirements given the specified operating temperature limits.

Pressure Sensors Transducers Part Context

This part belongs to the PS05 series of board-mount pressure sensors from Same Sky. The series focuses on providing accurate, low-profile solutions for embedded pressure detection. The PS05-A100KP-5W specifically addresses applications needing absolute reference points within a 100 kPa range.
