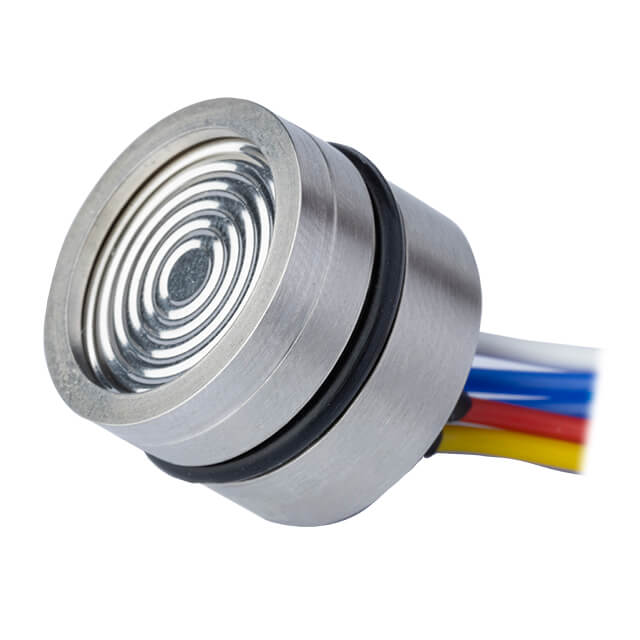

PS06-G400KP-5W

$44.87

Description：SENSOR 58.02PSIG .15V
Series：PS06
Mfr：Same Sky (Formerly CUI Devices)
Package：Box

SKU:a4f5af6e2930 Category: Pressure Sensors, Transducers Brand: Same Sky (Formerly CUI Devices)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PS06-G400KP-5W is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is SENSOR 58.02PSIG .15V. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PS06-G400KP-5W

Description：SENSOR 58.02PSIG .15V
Series：PS06
Mfr：Same Sky (Formerly CUI Devices)
Package：Box
Applications：-
Pressure Type：Gauge
Operating Pressure：58.02PSI (400kPa)
Output Type：Wheatstone Bridge
Output：60 mV ~ 150 mV
Accuracy：-
Voltage - Supply：-
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：Wire Leads
Maximum Pressure：116.03PSI (800kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PS06-G400KP-5W

PS06-G400KP-5W

Pressure Sensors Transducers Overview

The PS06-G400KP-5W is a board-mount pressure sensor manufactured by Same Sky (Formerly CUI Devices). It features a ratiometric analog output and operates with a 1.5 mA excitation current. The device measures gauge pressure up to 400 kPa, delivering an output voltage range of 60 mV to 150 mV. It supports a wide operating temperature range from -40°C to +125°C. The sensor utilizes a five-wire interface and is housed in a module package. Key specifications include a maximum pressure rating of 800 kPa and compliance with RoHS3 standards.

Pressure Sensors Transducers Feature Summary

Ratiometric analog output for consistent signal integrity across varying supply voltages
Wide operational temperature tolerance suitable for harsh industrial environments
Gauge pressure measurement capability with high accuracy for precise monitoring

Pressure Sensors Transducers Applications

Industrial automation systems requiring real-time pressure monitoring
HVAC equipment for air and liquid flow control
Medical devices needing reliable fluid pressure sensing
Automotive applications involving engine or tire pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific pressure rating and output characteristics against your system requirements before procurement. Confirm that the module package fits your PCB layout constraints. Ensure the operating temperature range aligns with your application environment. Check for any recent product change notices or end-of-life announcements from the manufacturer. Validate compatibility with your excitation current limits.

Pressure Sensors Transducers Selection Notes

Select this component when a ratiometric output is required to maintain accuracy despite supply voltage fluctuations. Consider the 400 kPa gauge pressure range for moderate pressure applications. Evaluate the -40°C to +125°C temperature range for environmental suitability. Assess the five-wire interface complexity against available design resources. Compare performance metrics with alternative sensors if higher precision or different pressure ranges are needed.

Pressure Sensors Transducers Part Context

The PS06-G400KP-5W belongs to the PS06 series of board-mount pressure sensors from Same Sky. This series focuses on providing reliable pressure sensing solutions for various industrial and commercial applications. The module package allows for easy integration into existing designs. The ratiometric output feature simplifies signal conditioning requirements in many systems.

Pressure Sensors Transducers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for potential alternatives if this component becomes unavailable.
