PS07-S1000MP-6P

Pressure Sensors Transducers Overview

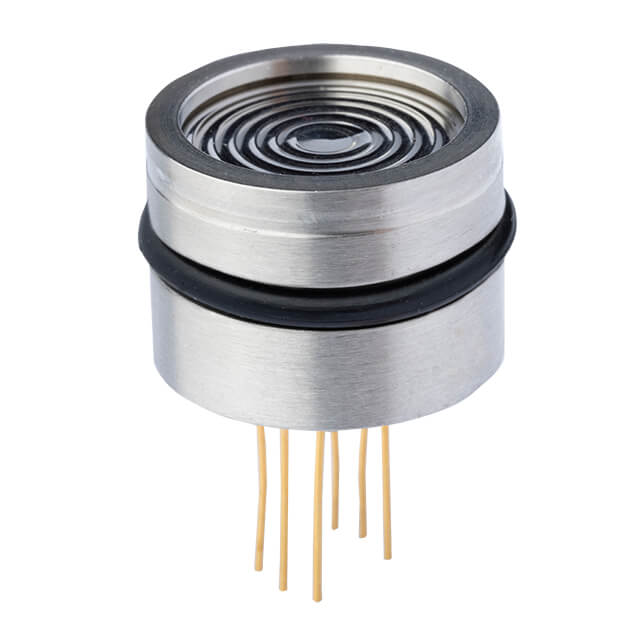

The PS07-S1000MP-6P is a board-mount pressure sensor manufactured by Same Sky. It features a sealed gauge pressure type with a working pressure of 1000 MPa. The device provides an analog output voltage of 90 mV and operates on a 1.5 mA excitation current. It utilizes a 6-pin configuration for interface connections. The unit supports a wide operating temperature range from -40°C to +125°C. The sensor is RoHS compliant and classified under EAR99.

Pressure Sensors Transducers Feature Summary

• Sealed gauge pressure measurement capability
• Ratiometric analog voltage output
• High-pressure tolerance up to 1000 MPa

Pressure Sensors Transducers Applications

• Industrial hydraulic systems monitoring
• High-pressure pneumatic equipment testing
• Heavy machinery pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct pressure rating and pinout configuration. Confirm that the 1000 MPa specification aligns with application requirements, as this represents an extreme pressure range compared to standard industrial sensors. Check for updated datasheets regarding mechanical dimensions and mounting specifications before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this component when applications require sensing extremely high pressures in sealed gauge configurations. The ratiometric output simplifies signal conditioning relative to supply voltage variations. Ensure the system can accommodate the specified 1.5 mA excitation current and 90 mV output swing. Verify compatibility with the 6-pin package format for PCB layout constraints.

Pressure Sensors Transducers Part Context

This part belongs to the Same Sky board-mount pressure sensor family, designed for direct integration into electronic circuits. The series offers various pressure ranges and output types to suit different industrial needs. The PS07 variant specifically addresses high-pressure applications requiring robust performance within a compact form factor suitable for surface mount or through-hole assembly processes.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's cross-reference guide for potential alternatives if this specific model becomes unavailable.
