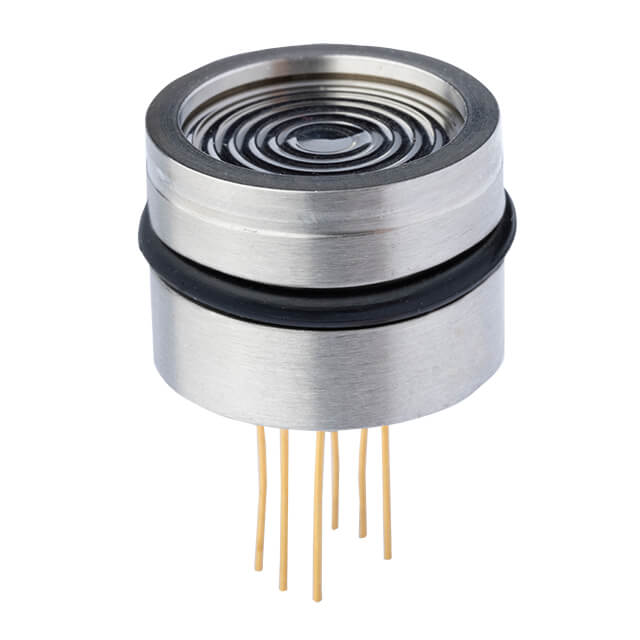

PS08-G10KP-6P is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is SENSOR 1.45PSIG .15V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PS08-G10KP-6P
- Description：SENSOR 1.45PSIG .15V
- Series：PS08
- Mfr：Same Sky (Formerly CUI Devices)
- Package：Box
- Applications：-
- Pressure Type：Gauge
- Operating Pressure：1.45PSI (10kPa)
- Output Type：Wheatstone Bridge
- Output：40 mV ~ 150 mV
- Accuracy：-
- Voltage - Supply：-
- Port Size：-
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：2.89PSI (20kPa)
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PS08-G10KP-6P
Pressure Sensors Transducers Overview
The PS08-G10KP-6P is a board-mount pressure sensor manufactured by Same Sky. It features a gauge pressure type with a working pressure range of 10 kPa. The device provides an analog output voltage ranging from 40 mV to 150 mV. It operates on a supply current of 1.5 mA and utilizes a 6-pin configuration for connection. The sensor is designed for ratiometric operation, ensuring output stability relative to the excitation voltage.
Pressure Sensors Transducers Feature Summary
- Ratiometric analog output for stable signal processing
- Gauge pressure measurement capability
- Compact board-mount form factor
Pressure Sensors Transducers Applications
- Industrial process monitoring systems
- HVAC pressure detection
- Medical gas flow monitoring
Pressure Sensors Transducers Procurement Notes
Verify the specific pressure rating and pin configuration against the official datasheet before integration. Confirm environmental compliance status such as RoHS3 requirements. Ensure the operating temperature range aligns with the application's thermal conditions. Cross-reference the manufacturer part number to avoid confusion with similar series variants.
Pressure Sensors Transducers Selection Notes
Select this component when a low-pressure gauge measurement is required in a compact design. The ratiometric output simplifies interface circuitry by eliminating the need for precise reference voltages. Consider the 1.5 mA excitation current for power-sensitive applications. Evaluate the 6-pin layout for PCB space constraints.
Pressure Sensors Transducers Part Context
This part belongs to the PS08 series of board-mount pressure sensors from Same Sky. The series offers various pressure ranges and output types. The PS08-G10KP-6P specifically targets low-pressure gauge applications. It shares common mechanical dimensions with other variants in the family but differs in electrical specifications.
Pressure Sensors Transducers Replacement Considerations
Consult the official Same Sky documentation for direct substitutes within the PS08 series. Verify compatibility of pinout and mounting dimensions before considering alternative models.
