PS214-315

Overview

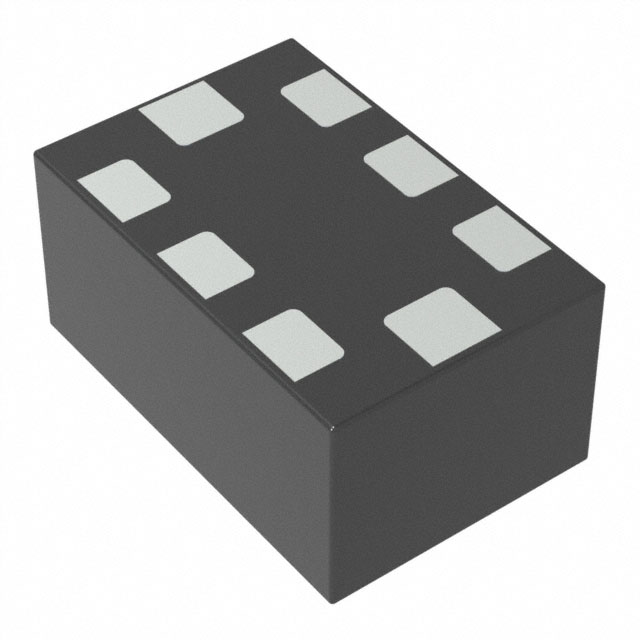

The PS214-315 is a voltage-controlled phase shifter manufactured by Skyworks Solutions Inc. It operates within the frequency range of 1700 MHz to 2800 MHz. The component provides a nominal phase shift of 100 degrees and is designed for high-speed wireless communication applications. It utilizes an 8-LGA surface-mount package, ensuring compact integration into RF systems.

Feature Summary

• Voltage-controlled operation for precise phase adjustment
• Designed for high-speed wireless communication protocols
• Compact 8-LGA surface-mount package for space-constrained designs

Applications

• High-speed wireless communication systems
• RF modulator circuits
• General purpose RF phase shifting

Procurement Notes

Verify current lifecycle status as the component is listed as obsolete or end-of-life in multiple sources. Confirm availability through authorized distributors or surplus channels. Ensure compatibility with existing design specifications before procurement due to potential discontinuation risks.

Selection Notes

Select this component for applications requiring a 100-degree phase shift within the 1.7 GHz to 2.8 GHz band. Consider the 8-LGA package size for board layout constraints. Evaluate alternative components if long-term supply stability is critical, given its obsolete status.

Part Context

This part belongs to Skyworks' portfolio of RF integrated circuits and modules. It serves as a specialized analog phase shifter, distinct from power amplifiers or front-end modules found in other Skyworks product lines. Its primary function is signal phase manipulation in RF transmission paths.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the obsolete lifecycle status, engineers should identify equivalent phase shifters from other manufacturers that match the 1.7-2.8 GHz frequency range and 100-degree phase shift requirement.
