Product Detailed Parameters
- Description：OPTOISOLATOR 5KV 1CH TRANS 4-DIP
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tube
- Number of Channels：1
- Voltage - Isolation：5000Vrms
- Current Transfer Ratio (Min)：80% @ 5mA
- Current Transfer Ratio (Max)：400% @ 5mA
- Turn On / Turn Off Time (Typ)：-
- Rise / Fall Time (Typ)：3µs, 5µs
- Input Type：AC, DC
- Output Type：Transistor
- Voltage - Output (Max)：80V
- Current - Output / Channel：50mA
- Voltage - Forward (Vf) (Typ)：1.17V
- Current - DC Forward (If) (Max)：80 mA
- Vce Saturation (Max)：300mV
- Operating Temperature：-55°C ~ 100°C
- Mounting Type：Through Hole
- Package / Case：4-DIP (0.300", 7.62mm)
- Supplier Device Package：4-DIP
- Grade：-
- Qualification：-
Download product information
Overview

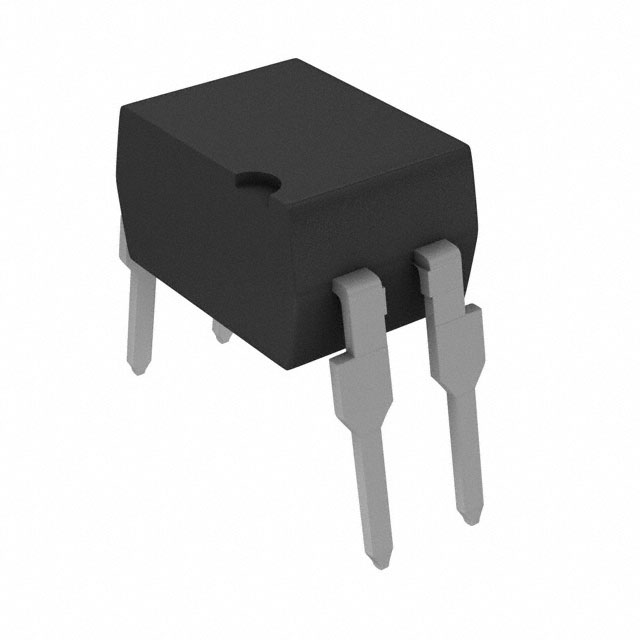

The PS2565-1Y-V-A is a single-channel transistor output optocoupler manufactured by Renesas Electronics. It features an NPN phototransistor output and supports through-hole installation in a DIP-4 package. The device provides high isolation voltage of 5000 Vrms, with a maximum collector-emitter voltage of 80 V and a maximum collector current of 50 mA. Key electrical parameters include a forward current of 10 mA, forward voltage of 1.17 V, and saturation voltage of 300 mV. Switching characteristics specify rise and fall times of 3 µs and 5 µs respectively, with a power dissipation of 150 mW. Operating temperature ranges from -55 °C to +100 °C.
Feature Summary
- Provides galvanic isolation between input and output circuits using an LED and phototransistor configuration.
- Supports AC and DC input signal transmission for versatile interface applications.
- Features high-speed switching capabilities suitable for data communication and control systems.
Applications
- Telephone and fax equipment interfaces
- Programmable logic controllers (PLCs)
- Factory automation and office automation equipment
Procurement Notes
Verify the specific suffix 'V' against official Renesas documentation to confirm lead wire form or packaging variations, as standard datasheets may list base part numbers without this suffix. Ensure the component matches the required DIP-4 through-hole footprint and thermal specifications for the target application environment.
Selection Notes
Select this component when high isolation voltage and moderate speed are required for single-channel signal transmission. Compare against the PS2565L series for surface mount alternatives or the PS2562 series if higher current transfer ratio via Darlington output is needed. Verify compatibility with system voltage levels and thermal management requirements.
Part Context
This part belongs to the PS2565 series of high isolation voltage photocouplers designed for industrial and commercial applications. The series includes variants with different packages such as DIP and SMD options, catering to diverse manufacturing needs while maintaining consistent electrical performance standards for signal isolation.
Replacement Considerations
PS2565-1Y-A serves as a direct functional equivalent within the same series offering identical electrical characteristics and pinout configuration for through-hole implementations.
