PS3417

Pressure Sensors Transducers Overview

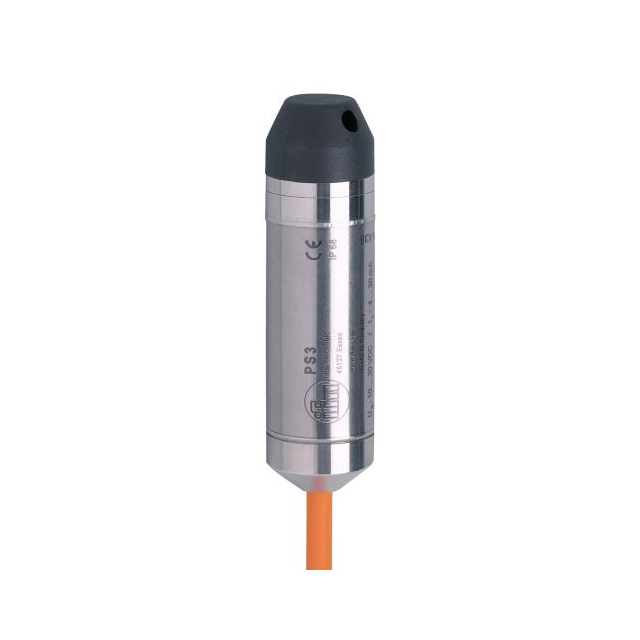

The PS3417 is a hydrostatic submersible pressure transmitter designed for level measurement applications. It features a capillary tube design for pressure compensation, ensuring accurate readings in various environments. The device operates within a measuring range of 0 to 1 bar (0 to 14.5 psi) and withstands an overpressure rating of up to 87 psi. It utilizes a 15-meter PUR cable for connectivity and supports DC electrical operation. The unit is suitable for monitoring levels in containers, tanks, wells, and streaming water, providing reliable data for process control.

Pressure Sensors Transducers Feature Summary

• Capillary tube design enables effective pressure compensation for stable performance
• Submersible construction allows direct installation in liquids for level monitoring
• Integrated 15-meter PUR cable provides durable connection for industrial use

Pressure Sensors Transducers Applications

• Level measurement in storage containers and tanks
• Monitoring water levels in wells and drill holes
• Hydrostatic level detection in streaming water systems

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against the official ifm datasheet to confirm cable length and connector type. Ensure the application medium temperature falls within the specified operational range of -10 to 50 °C. Confirm that the required pressure rating aligns with the 1 bar nominal capacity and 87 psi overpressure limit. Cross-reference the part number with current manufacturer documentation to avoid discrepancies in technical specifications or interface details.

Pressure Sensors Transducers Selection Notes

Select this model when hydrostatic level measurement in open or closed vessels is required. The submersible design eliminates the need for complex mounting structures. Consider the 15-meter cable length for distance requirements between the sensor and control unit. Verify compatibility with existing DC power supplies and signal processing equipment. Ensure the process medium is compatible with the sensor materials to prevent corrosion or damage during long-term immersion.

Pressure Sensors Transducers Part Context

The PS3417 belongs to the PS3 series of submersible pressure transmitters from ifm efector. This series is engineered for robust performance in demanding industrial environments. The product line focuses on providing accurate level data through reliable pressure sensing technology. Integration with broader automation systems is facilitated by standard electrical interfaces and durable construction methods typical of the manufacturer's sensor portfolio.

Pressure Sensors Transducers Replacement Considerations

Consult official ifm substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other series without checking pinout and specification alignment. Verify that any substitute maintains the same pressure rating and cable configuration. Review manufacturer documentation for updates regarding component availability or design changes.
