PS781-08G0L1

Pressure Sensors Transducers Overview

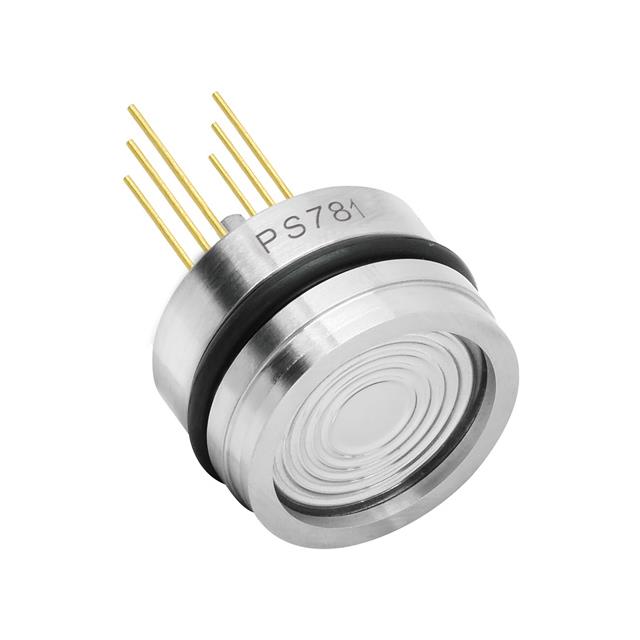

The L-com PS781-08G0L1 is a board-mount pressure sensor designed for gauge pressure measurement. It features a cylindrical package with a 19 mm diameter and PC pin termination style. The device operates within an analog voltage output configuration, supporting a supply voltage of 10V. Its operating pressure range extends to 350 kPa (50.76 PSI), with a maximum pressure limit of approximately 43.51 PSI (300 kPa) as indicated by related series data. The unit is temperature compensated and functions reliably across an operating temperature range of -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

• Temperature compensated design ensures stable performance across varying thermal conditions
• Cylindrical form factor with 19 mm diameter facilitates compact board mounting
• Analog voltage output provides direct signal interfacing capabilities
• PC pin termination style supports standard printed circuit board integration

Pressure Sensors Transducers Applications

• Industrial process control systems requiring gauge pressure monitoring
• HVAC equipment utilizing board-mounted pressure sensing
• Automotive pneumatic system diagnostics
• Medical device pressure regulation modules

Pressure Sensors Transducers Procurement Notes

Verify the specific part number against manufacturer documentation to confirm exact pressure ratings, as series variations exist between similar models like PS781-07G0L1 and PS781-08G0L1. Ensure compatibility with 10V supply requirements and PC pin footprint dimensions before procurement. Confirm temperature compensation specifications match application thermal profiles. Check lead times and active status directly with authorized distributors or L-com official channels to avoid obsolete stock issues.

Pressure Sensors Transducers Selection Notes

Select this component when a compact, temperature-compensated gauge pressure sensor with analog voltage output is required. The 19 mm cylindrical design suits space-constrained applications. Verify that the 350 kPa operating range meets system pressure demands. Ensure the PCB layout accommodates PC pin termination and 10V supply constraints. Compare against sealed gauge variants if absolute pressure measurement is needed instead of gauge reference.

Pressure Sensors Transducers Part Context

The PS781 series from L-com represents a line of board-mount pressure transducers focused on industrial connectivity and sensing solutions. These sensors typically feature robust construction suitable for harsh environments. The series includes various pressure ranges and port styles, catering to diverse monitoring needs in automation and instrumentation sectors.

Pressure Sensors Transducers Replacement Considerations

Cross-reference with other L-com PS781 series models such as PS781-07G0L1 for similar gauge pressure applications. Verify electrical interface compatibility and physical footprint alignment before substitution. Consult official datasheets for precise parameter matching.
