PS781-0BG0L1 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists L-com. Its product description is 0~20KPA, GAUGE, COMPENSATED, 19. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PS781-0BG0L1
- Description：0~20KPA, GAUGE, COMPENSATED, 19
- Series：PS781
- Mfr：L-com
- Package：Bag
- Applications：Industrial Automation
- Pressure Type：Gauge
- Operating Pressure：2.9PSI (20kPa)
- Output Type：Analog Voltage
- Output：-
- Accuracy：-
- Voltage - Supply：10V
- Port Size：-
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：4.35PSI (30kPa)
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Through Hole
- Package / Case：Cylinder
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PS781-0BG0L1
Pressure Sensors Transducers Overview

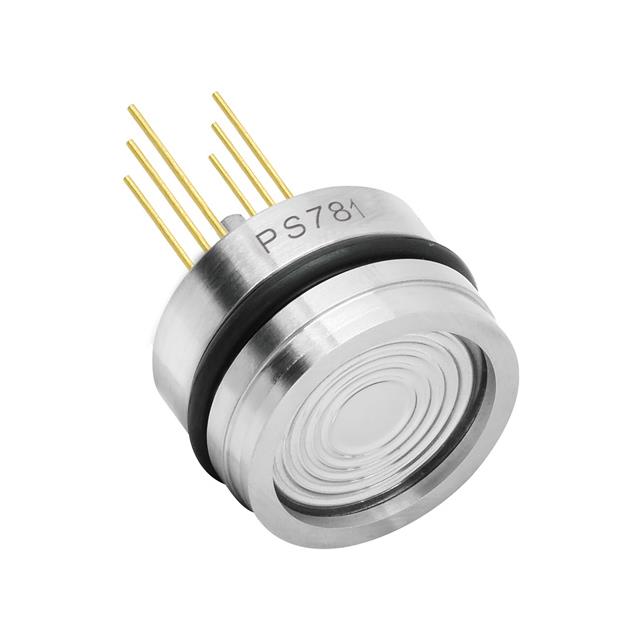

The PS781-0BG0L1 is a board-mount pressure sensor from the L-com PS781 series. It features a gauge pressure type with an operating pressure of 20 kPa and a maximum pressure of 300 kPa. The device provides an analog voltage output and includes temperature compensation. It operates within a temperature range of -40°C to 125°C and utilizes PC pin termination for mounting.
Pressure Sensors Transducers Feature Summary
- Temperature compensated design ensures stable performance across varying thermal conditions
- Gauge pressure measurement capability for relative pressure monitoring applications
- Analog voltage output interface suitable for direct integration into control systems
Pressure Sensors Transducers Applications
- Board mount industrial pressure monitoring
- HVAC system pressure sensing
- Medical device pneumatic control
Pressure Sensors Transducers Procurement Notes
Verify the specific part number suffix against official L-com documentation to confirm exact pressure ratings and compensation specifications. Ensure compatibility with board mounting requirements and supply voltage limits before procurement. Cross-reference datasheet parameters for operating temperature ranges.
Pressure Sensors Transducers Selection Notes
Select this component when gauge pressure measurement up to 20 kPa is required in compact board-mount form factors. Consider the analog voltage output and temperature compensation features for applications demanding accuracy across wide thermal ranges. Verify mechanical port size and termination style against PCB layout constraints.
Pressure Sensors Transducers Part Context
This sensor belongs to the PS781 series, which offers various pressure ranges and configurations. The PS781-0BG0L1 specifically addresses low-pressure gauge applications with integrated compensation. It complements other sensors in the family that may offer different pressure thresholds or output types.
Pressure Sensors Transducers Replacement Considerations
Consult official L-com substitution guides for compatible alternatives. Verify electrical characteristics and mechanical dimensions match before replacing with similar gauge pressure sensors.
