PS781-10G0L1

Pressure Sensors Transducers Overview

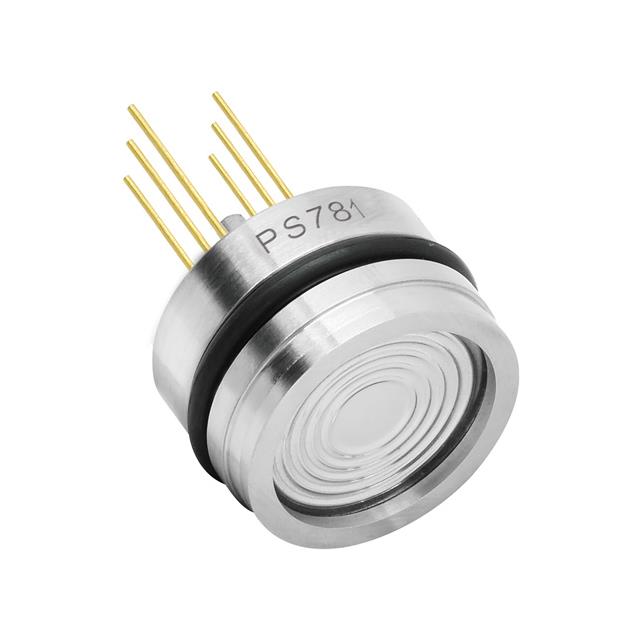

The PS781-10G0L1 is a board mount pressure sensor manufactured by L-com, designed for gauge pressure applications. It features a cylindrical form factor with a 19 mm diameter and utilizes PC pin termination for circuit integration. The device operates within an operating pressure range of 0 to 1000 kPa (0 to 1 MPa) and can withstand a maximum pressure of approximately 145 psi. It provides temperature-compensated analog voltage output, ensuring stability across an operating temperature range of -40°C to 125°C. This component is suitable for industrial environments requiring reliable pressure monitoring.

Pressure Sensors Transducers Feature Summary

• Temperature compensated design ensures accurate readings across varying thermal conditions
• Cylindrical package with 19 mm diameter facilitates compact board mounting
• PC pin termination style allows for direct integration into printed circuit boards
• Gauge pressure sensing capability measures pressure relative to atmospheric baseline

Pressure Sensors Transducers Applications

• Industrial process control systems requiring gauge pressure monitoring
• HVAC equipment utilizing board-mounted pressure transducers
• Medical devices needing compact pressure sensing solutions
• Automotive pneumatic system testing and monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific part number PS781-10G0L1 against official L-com documentation to confirm current availability and lead times. Ensure that the gauge pressure specification and 1000 kPa range align with your system requirements. Check for any updated datasheets regarding electrical characteristics and mechanical dimensions before finalizing procurement orders to avoid compatibility issues.

Pressure Sensors Transducers Selection Notes

Select this model when a cylindrical, board-mount pressure sensor with a 1000 kPa gauge range is required. The 19 mm diameter and PC pin termination are critical for PCB layout constraints. Consider the -40°C to 125°C operating temperature range for environmental suitability. Verify that the analog voltage output matches your signal conditioning circuitry capabilities before implementation.

Pressure Sensors Transducers Part Context

This component belongs to the PS781 series of pressure sensors from L-com, which offers various ranges and configurations. The PS781 series is characterized by its robust construction and temperature compensation features. The 10G0L1 variant specifically denotes the 1000 kPa gauge pressure range. It is distinct from other series like PS781-07G0L1 which have different pressure ratings.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes may include other models within the L-com PS781 series with matching 1000 kPa gauge ranges and PC pin terminations. Verify mechanical dimensions and electrical specifications before swapping. No alternative manufacturer part numbers are publicly confirmed as direct replacements without custom engineering.
