PS781-12G0L1

Pressure Sensors Transducers Overview

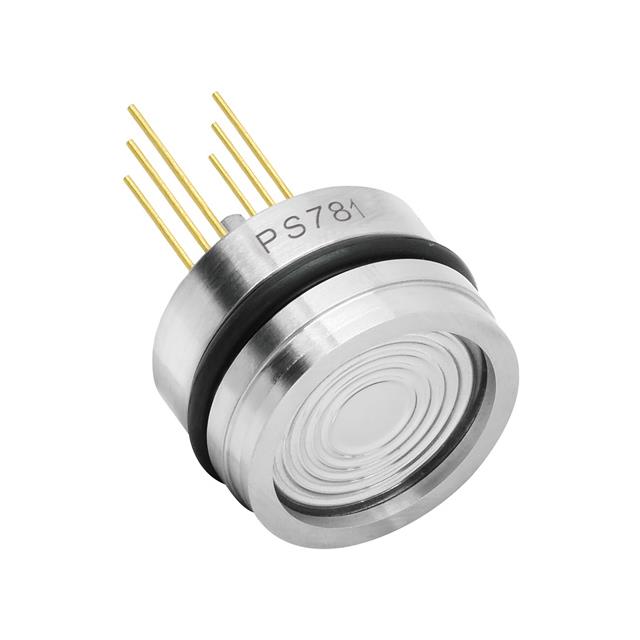

The L-com PS781-12G0L1 is a board-mount pressure transducer designed for gauge pressure measurement. It features a cylindrical form factor with a maximum operating pressure of 290.08 PSI (2000 kPa) and a maximum pressure limit of approximately 300 kPa range. The device provides an analog voltage output and includes temperature compensation to ensure accuracy across its operating temperature range of -40°C to 125°C. Packaged in a bag, this active component utilizes PC pin termination for secure circuit integration.

Pressure Sensors Transducers Feature Summary

• Temperature compensated design ensures stable performance across wide thermal ranges
• Cylindrical mechanical structure suitable for compact board mount applications
• Analog voltage output interface for direct signal processing

Pressure Sensors Transducers Applications

• Industrial process control systems requiring gauge pressure monitoring
• HVAC equipment pressure sensing modules
• Automotive pneumatic system diagnostics

Pressure Sensors Transducers Procurement Notes

Verify the specific part number suffix against the manufacturer datasheet to confirm exact pressure ratings and electrical characteristics. Ensure compatibility with the target PCB footprint and supply voltage requirements before finalizing procurement orders. Cross-reference lead times with authorized distributors as standard lead times may vary.

Pressure Sensors Transducers Selection Notes

Select this model when a gauge pressure sensor with a 2000 kPa range and analog voltage output is required. Consider the cylindrical package size and PC pin termination style for mechanical fitment. Verify that the operating temperature range of -40°C to 125°C meets the environmental conditions of the intended application.

Pressure Sensors Transducers Part Context

This component belongs to the PS781 series of pressure sensors manufactured by L-com. The series offers various pressure ranges and output types, with this specific variant focusing on high-range gauge pressure measurement. It is part of L-com's broader portfolio of industrial interconnect and sensing solutions.

Pressure Sensors Transducers Replacement Considerations

Consult official L-com documentation for direct cross-references. Similar models in the PS781 series may offer different pressure ranges or output types but share compatible mounting styles.
