PS781-14S0L1

Pressure Sensors Transducers Overview

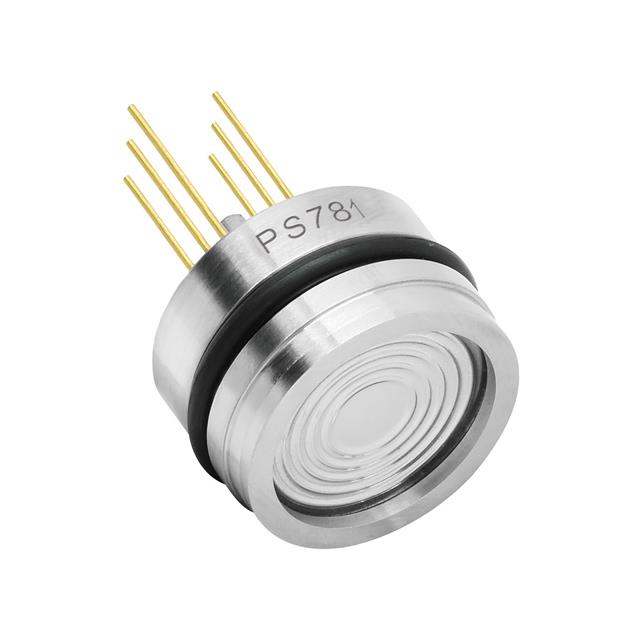

The PS781-14S0L1 is a board-mount pressure sensor manufactured by L-com. It features a sealed gauge pressure type with an operating range of 0 to 7 MPa (approximately 1015 PSI). The device utilizes PC pin termination for circuit board integration. It includes temperature compensation and operates within a wide temperature range of -40°C to 125°C, ensuring stability in demanding environments.

Pressure Sensors Transducers Feature Summary

• Sealed gauge pressure measurement capability
• Integrated temperature compensation for accuracy
• PC pin termination style for board mounting

Pressure Sensors Transducers Applications

• Industrial automation systems
• Medical equipment monitoring
• HVAC pressure control

Pressure Sensors Transducers Procurement Notes

Verify the specific pressure rating and package configuration against the official L-com datasheet before procurement. Ensure compatibility with the target PCB layout regarding PC pin spacing. Confirm that the sealed gauge specification aligns with the application's reference pressure requirements to avoid measurement errors.

Pressure Sensors Transducers Selection Notes

Select this component when a sealed gauge pressure sensor with high-temperature tolerance is required. The 7 MPa range suits applications needing robust pressure monitoring. The PC pin format is suitable for automated assembly processes on standard printed circuit boards.

Pressure Sensors Transducers Part Context

This part belongs to the PS781 series of pressure transducers from L-com. The series offers various pressure ranges and port styles. The PS781-14S0L1 specifically denotes the 7 MPa sealed gauge variant with PC pin termination, distinguishing it from other models in the family with different pressure limits or connection types.

Pressure Sensors Transducers Replacement Considerations

Consult the official L-com documentation for direct cross-references. No public substitute part numbers are confirmed in available data. Verify electrical and mechanical compatibility if considering alternative sensors from other manufacturers.
