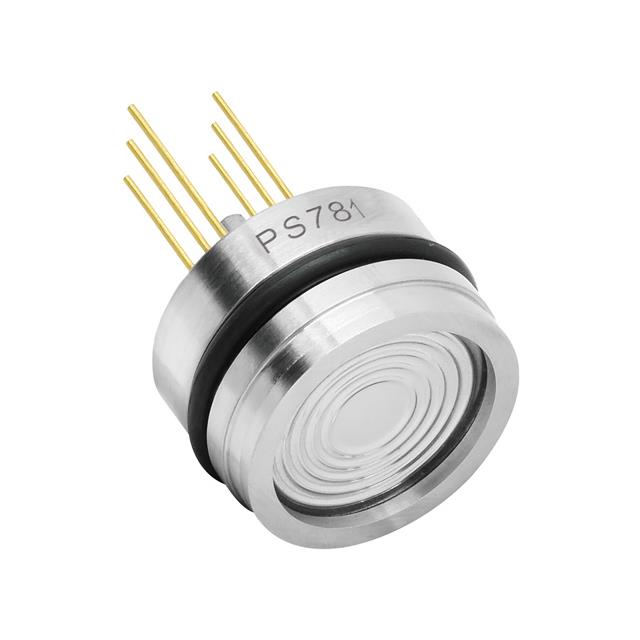

PS781-15S0L1

$31.39

Description：0~10MPA, SEALED GAUGE, COMPENSAT
Series：PS781
Mfr：L-com
Package：Bag

SKU:30f99ad4e173 Category: Pressure Sensors, Transducers Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PS781-15S0L1 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists L-com. Its product description is 0~10MPA, SEALED GAUGE, COMPENSAT. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PS781-15S0L1

Description：0~10MPA, SEALED GAUGE, COMPENSAT
Series：PS781
Mfr：L-com
Package：Bag
Applications：Industrial Automation
Pressure Type：Sealed Gauge
Operating Pressure：1450.38PSI (10000kPa)
Output Type：Analog Voltage
Output：-
Accuracy：-
Voltage - Supply：10V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：PC Pin
Maximum Pressure：2175.57PSI (15000kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：Through Hole
Package / Case：Cylinder
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PS781-15S0L1

PS781-15S0L1

Pressure Sensors Transducers Overview

The PS781-15S0L1 is a board-mount pressure transmitter from the L-com PS781 series. It features a sealed gauge pressure range of 0 to 10 MPa with an isolated construction design. The sensor utilizes a 19 mm diameter housing made of 316L stainless steel and employs PC pin termination for mounting. It operates within a temperature range of -40°C to 125°C and supports both constant current and constant voltage power supplies.

Pressure Sensors Transducers Feature Summary

Sealed gauge pressure sensing capability
Isolated construction design
Temperature compensated performance
PC pin board mount termination

Pressure Sensors Transducers Applications

Industrial process control systems
Hydraulic and pneumatic monitoring
Medical equipment instrumentation
Automotive testing applications

Pressure Sensors Transducers Procurement Notes

Verify the specific datasheet version for accurate electrical characteristics, as output types may vary between constant current and constant voltage configurations. Confirm that the 19 mm diameter form factor fits the target PCB layout. Ensure the operating environment remains within the specified -40°C to 125°C range to maintain accuracy. Check for any required calibration documentation upon receipt.

Pressure Sensors Transducers Selection Notes

Select this model when a sealed gauge measurement up to 10 MPa is required in a compact 19 mm package. The 316L stainless steel housing provides corrosion resistance suitable for harsh industrial environments. Consider the PC pin termination style for direct board integration without additional porting hardware. Verify power supply compatibility with the chosen output configuration.

Pressure Sensors Transducers Part Context

This component belongs to the PS781 series of pressure transmitters, which are designed for board-level integration. The series offers various pressure ranges and output types to suit different application needs. The PS781-15S0L1 specifically targets high-pressure gauge measurements requiring robust construction and wide temperature operation.
