PS781-17S0L1

Pressure Sensors Transducers Overview

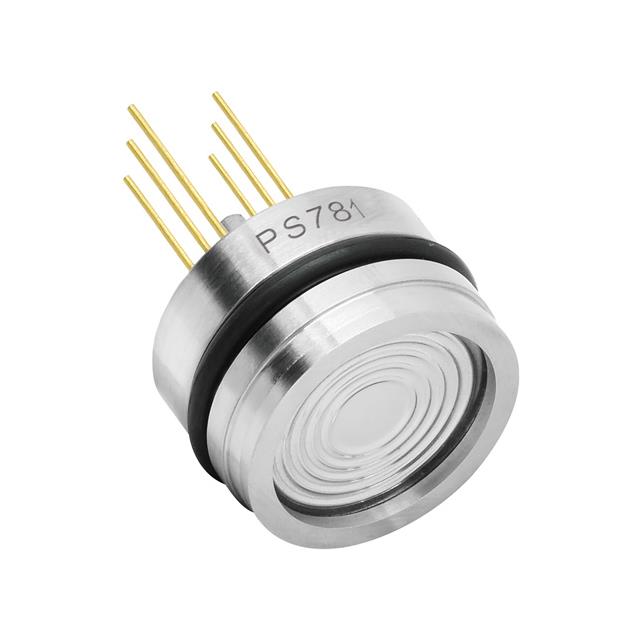

The L-com PS781-17S0L1 is a highly stable piezo-resistive pressure sensor designed for sealed gauge applications. It features a wide temperature compensation range and zero correction to ensure accuracy across varying environmental conditions. The device utilizes a robust silicon die for long-term stability and reliability. It operates within a pressure range of 0 to 20 MPa (approximately 2900.75 PSI). The sensor has a compact 19 mm diameter form factor, facilitating integration into tight spaces. It employs PC pin connections for secure electrical interfacing. This component is engineered for industrial environments requiring precise pressure monitoring.

Pressure Sensors Transducers Feature Summary

• Highly stable piezo-resistive sensing element with compensated performance
• Wide temperature compensation and zero correction capabilities
• Sealed gauge design suitable for harsh industrial environments
• Compact 19 mm diameter housing with PC pin connectivity

Pressure Sensors Transducers Applications

• Industrial process control systems requiring accurate pressure monitoring
• Hydraulic and pneumatic machinery diagnostics
• Automotive testing equipment and engine management systems
• Medical device pressure regulation and monitoring
• Aerospace ground support equipment validation

Pressure Sensors Transducers Procurement Notes

Verify the specific part number suffix against official L-com documentation to confirm interface type and calibration settings. Ensure the required pressure range matches the application's maximum operating limits. Confirm that the sealed gauge configuration aligns with the reference pressure requirements of the system. Cross-check the physical dimensions and mounting constraints before finalizing procurement decisions.

Pressure Sensors Transducers Selection Notes

Select this model when high stability and wide temperature compensation are critical for the application. Consider the 19 mm diameter size for space-constrained installations. Evaluate the need for sealed gauge measurement versus other reference types. Assess the compatibility of PC pin connections with existing circuit board layouts. Review the 20 MPa range to ensure it covers the expected operational pressures without exceeding limits.

Pressure Sensors Transducers Part Context

The PS781 series represents L-com's line of high-performance pressure sensors. These components are designed for demanding industrial applications where reliability is paramount. The series offers various pressure ranges and interface options to suit different system requirements. The PS781-17S0L1 specifically addresses needs for sealed gauge measurements with enhanced thermal stability.

Pressure Sensors Transducers Replacement Considerations

Consult official L-com substitution guides for direct replacements. Verify that any alternative part matches the 0-20 MPa range and 19 mm diameter. Ensure equivalent temperature compensation specifications are maintained. Check for compatible PC pin interfaces if board-level replacement is intended.
