PS783-I08GL1

Pressure Sensors Transducers Overview

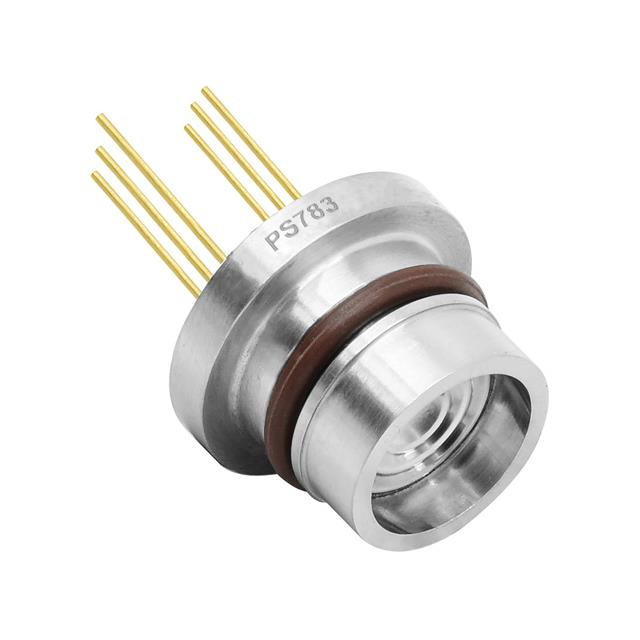

The L-com PS783-I08GL1 is a board-mount piezo-resistive pressure sensor designed for gauge pressure measurement. It features an operating pressure range of 0 to 350 kPa with a maximum pressure limit of 525 kPa. The device provides an analog voltage output and operates within a supply voltage range up to 10 VDC. It includes wide temperature compensation and zero correction capabilities, ensuring stability across an operating temperature range of -40°C to 125°C. The sensor utilizes PC pin termination and has a compact size of 12.6 mm.

Pressure Sensors Transducers Feature Summary

• Piezo-resistive sensing element with high long-term stability
• Wide temperature compensation and zero correction for accuracy
• Isolated construction for reliable performance
• Compact 12.6 mm form factor suitable for board mounting

Pressure Sensors Transducers Applications

• Board mount pressure monitoring systems
• Industrial gauge pressure measurement applications
• Environmental control systems requiring compensated sensors

Pressure Sensors Transducers Procurement Notes

Verify the specific pressure rating and package configuration against the official L-com datasheet before procurement. Ensure that the operating environment remains within the specified -40°C to 125°C temperature range. Confirm that the system supply voltage does not exceed the 10 VDC maximum rating. Check for compatibility with the PC pin termination style during PCB layout design.

Pressure Sensors Transducers Selection Notes

Select this component when a compact, temperature-compensated gauge pressure sensor is required for board-level integration. The PS783-I08GL1 is suitable for applications needing 0-350 kPa range with high stability. Consider the isolated construction and piezo-resistive technology for robustness in industrial environments where long-term drift must be minimized.

Pressure Sensors Transducers Part Context

The PS783 series from L-com represents a line of highly stable piezo-resistive pressure transmitters. These sensors are engineered for gauge pressure measurements and feature integrated temperature compensation. The PS783-I08GL1 specifically targets applications requiring a 350 kPa range with a small footprint, distinguishing it from higher or lower range variants within the same product family.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes within the PS783 series include models with different pressure ranges such as PS783-I07GL1 (200 kPa) or PS783-I08SL1 variants. Verify that any replacement matches the 0-350 kPa operating range and 10 VDC supply requirement. Ensure the replacement maintains the PC pin termination and gauge pressure type specifications.
