PS783-I13GL1 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists L-com. Its product description is 0~3.5MPA, GAUGE, COMPENSATED, WI. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PS783-I13GL1
- Description：0~3.5MPA, GAUGE, COMPENSATED, WI
- Series：PS783
- Mfr：L-com
- Package：Bag
- Applications：Industrial Automation
- Pressure Type：Gauge
- Operating Pressure：507.63PSI (3500kPa)
- Output Type：Analog Voltage
- Output：-
- Accuracy：-
- Voltage - Supply：10V
- Port Size：-
- Port Style：No Port
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：761.45PSI (5250kPa)
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Through Hole
- Package / Case：Cylinder
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PS783-I13GL1
Pressure Sensors Transducers Overview

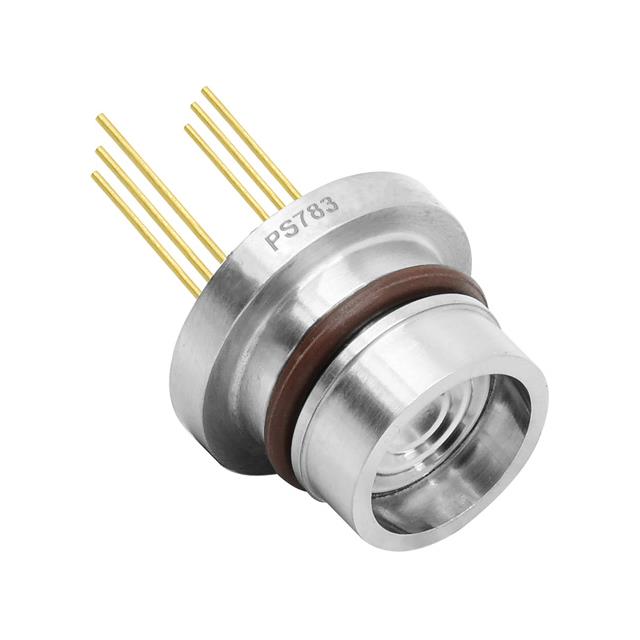

The L-com PS783-I13GL1 is a board mount pressure sensor designed for gauge pressure measurement. It features a compensated output range of 0 to 3.5 MPa (approximately 507.63 PSI). The device operates with a supply voltage of 10 VDC and utilizes a housing constructed from 316L stainless steel. It includes a cap with a diameter of 16.8 mm. The sensor supports an operating temperature range from -40°C to 125°C, ensuring reliability in varied thermal environments.
Pressure Sensors Transducers Feature Summary
- Constructed with 316L stainless steel housing for durability
- Compensated gauge pressure sensing capability
- Integrated cap with 16.8 mm diameter specification
Pressure Sensors Transducers Applications
- Board mount industrial instrumentation
- Gauge pressure monitoring systems
- Thermal environment applications within specified temperature limits
Pressure Sensors Transducers Procurement Notes
Verify the specific ordering ID and manufacturer documentation when sourcing this component. Confirm that the 316L stainless steel housing and 16.8 mm cap dimensions match your mechanical requirements. Ensure the 10 VDC supply voltage aligns with your system design before integration.
Pressure Sensors Transducers Selection Notes
Select this model when a board mount solution with 316L stainless steel construction is required for gauge pressure applications. The 0-3.5 MPa range suits moderate pressure monitoring tasks. Consider the -40°C to 125°C operating range for environmental compatibility.
Pressure Sensors Transducers Part Context
This component belongs to the L-com pressure sensor family, specifically engineered for board mounting. It provides compensated gauge pressure readings, distinguishing it from absolute or differential variants. The 316L stainless steel material offers corrosion resistance suitable for various industrial settings.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Consult official L-com documentation for potential alternatives if this part is discontinued or unavailable.
