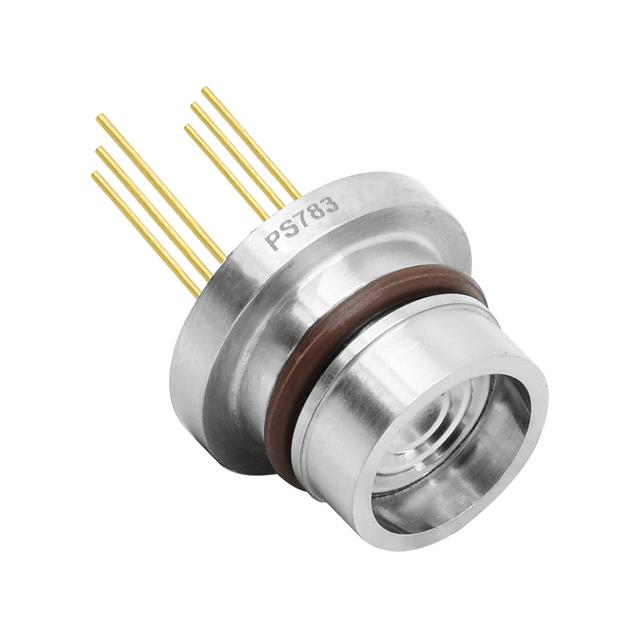

PS783-I14SL1

$34.46

Description：0~7MPA, SEALED GAUGE, COMPENSATE
Series：PS783
Mfr：L-com
Package：Bag

SKU:ddecd9f7d418 Category: Pressure Sensors, Transducers Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PS783-I14SL1 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists L-com. Its product description is 0~7MPA, SEALED GAUGE, COMPENSATE. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PS783-I14SL1

Description：0~7MPA, SEALED GAUGE, COMPENSATE
Series：PS783
Mfr：L-com
Package：Bag
Applications：Industrial Automation
Pressure Type：Sealed Gauge
Operating Pressure：1015.26PSI (7000kPa)
Output Type：Analog Voltage
Output：-
Accuracy：-
Voltage - Supply：10V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：PC Pin
Maximum Pressure：1522.9PSI (10500kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：Through Hole
Package / Case：Cylinder
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PS783-I14SL1

PS783-I14SL1

Pressure Sensors Transducers Overview

The L-com PS783-I14SL1 is a piezoresistive pressure transmitter designed for sealed gauge applications. It features a measurement range of 0 to 7 MPa and utilizes PC pin connections for board mounting. The device offers long-term stability of ±0.1%FS per year and includes wide temperature compensation. Its compact size measures 12.6mm, and the isolated construction allows for the measurement of various fluids.

Pressure Sensors Transducers Feature Summary

Piezoresistive sensing technology with zero correction capabilities
Isolated construction suitable for diverse fluid media
Wide temperature compensation range for enhanced reliability

Pressure Sensors Transducers Applications

Industrial process control systems requiring sealed gauge pressure monitoring
Fluid measurement in compact electronic assemblies
Applications demanding high long-term stability and reliability

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering ID against manufacturer documentation to ensure correct configuration. Confirm that the PC pin interface matches your PCB layout requirements. Check technical datasheets for environmental compliance details and country of origin information relevant to your procurement standards.

Pressure Sensors Transducers Selection Notes

Select this component when a sealed gauge pressure transmitter with a 0-7 MPa range is required. Consider its 12.6mm compact form factor for space-constrained designs. Ensure compatibility with 10VDC supply specifications and verify that the isolated construction meets the chemical resistance needs of the target fluid medium.

Pressure Sensors Transducers Part Context

This part belongs to the PS783 series of board mount pressure sensors from L-com. These transducers are engineered for precision measurement in industrial environments. The series emphasizes stability and compensation, making them suitable for critical monitoring tasks where accuracy over time is essential.
