PSA-V01-RC1/8

Pressure Sensors Transducers Overview

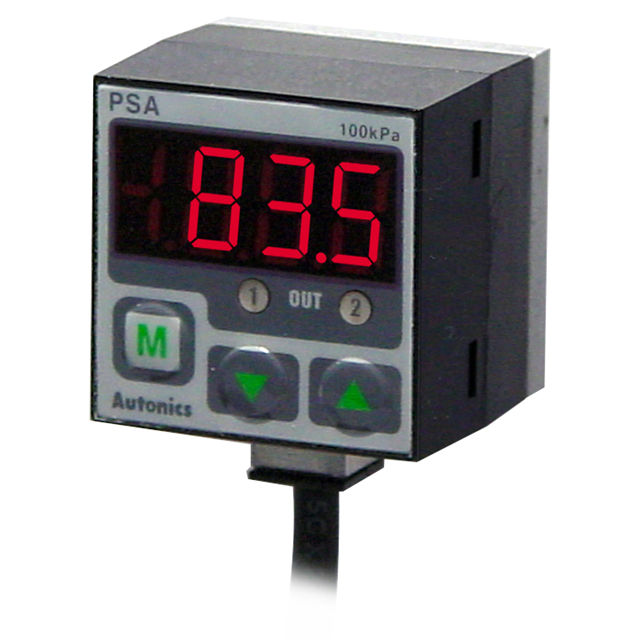

The Autonics PSA-V01-RC1/8 is a digital display pressure sensor designed for pneumatic applications involving air and non-corrosive gases. It features a rear fitting with an Rc(PT)1/8 pressure port interface and utilizes a cable connection type. The device operates on a power supply of 12-24VDC ±10% with a maximum ripple of 10%. It provides NPN open collector control output and supports optional voltage output ranging from 1 to 5VDC. The unit includes a built-in display capable of showing pressure in multiple units including kPa, bar, psi, and mmHg.

Pressure Sensors Transducers Feature Summary

• Integrated digital display for real-time pressure monitoring across various standard units
• Rear fitting configuration with Rc(PT)1/8 interface for compact installation
• NPN open collector control output with selectable analog voltage signal options
• Durable PC housing construction suitable for indoor industrial environments

Pressure Sensors Transducers Applications

• Industrial equipment pressure monitoring
• Automation system control integration
• Maintenance diagnostics for pneumatic circuits

Pressure Sensors Transducers Procurement Notes

Verify the specific model suffix against official Autonics documentation to confirm the exact output configuration, as variations exist within the series. Ensure the selected variant matches the required control logic and analog signal type for your application. Confirm that the operating environment remains indoors to prevent damage or safety hazards associated with outdoor exposure.

Pressure Sensors Transducers Selection Notes

Select this component when a digital readout is required alongside standard switching outputs. Verify compatibility with the target fluid type, ensuring it is strictly air or non-corrosive gas. Check that the Rc1/8 port size aligns with existing piping infrastructure and that the 12-24VDC power supply is available at the installation site.

Pressure Sensors Transducers Part Context

This sensor belongs to the Autonics PSA Series, which focuses on providing reliable pressure measurement solutions for industrial settings. The series emphasizes ease of use through digital displays and flexible output options. This specific model represents the base configuration for pneumatic pressure sensing with integrated display capabilities.

Pressure Sensors Transducers Replacement Considerations

Cross-reference part numbers such as PSAN-V01CV-RC1/8 or PSAN-V01CA-RC1/8 if different output types like PNP or current signals are needed. Ensure any substitute maintains the same Rc1/8 port specification and voltage requirements to guarantee mechanical and electrical compatibility.
