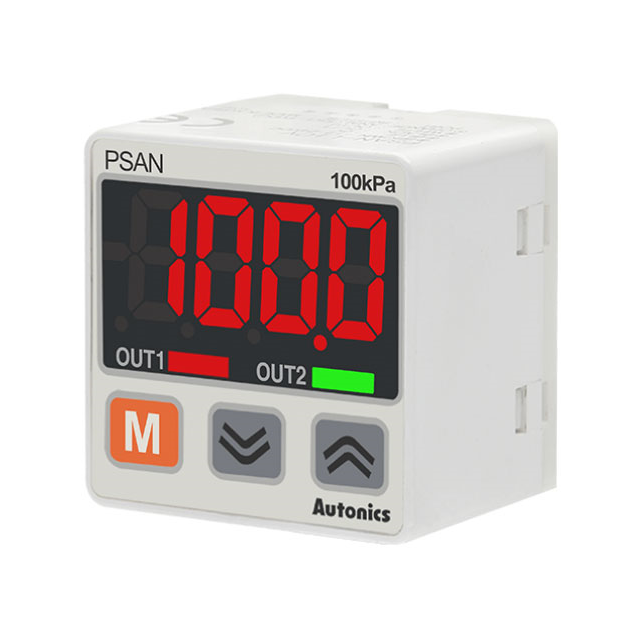

PSAN-1CPH-NPT1/8 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Autonics. Its product description is SENSOR 145.04PSI 1/8"NPT. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PSAN-1CPH-NPT1/8
- Description：SENSOR 145.04PSI 1/8"NPT
- Series：PSAN
- Mfr：Autonics
- Package：Box
- Applications：-
- Pressure Type：-
- Operating Pressure：145.04PSI (1000kPa)
- Output Type：PNP - Open Collector
- Output：-
- Accuracy：±1%
- Voltage - Supply：12V ~ 24V
- Port Size：Male - 1/8" (3.18mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：Connector
- Maximum Pressure：217.56PSI (1500kPa)
- Operating Temperature：-10°C ~ 50°C (TA)
- Mounting Type：-
- Package / Case：Module Box with Display
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PSAN-1CPH-NPT1/8
Pressure Sensors Transducers Overview
The PSAN-1CPH-NPT1/8 is a digital display pressure sensor designed for air and non-corrosive gases. It features a bottom port with an NPT 1/8 connection. The unit operates on a 12-24VDC power supply with a maximum ripple of 10%. It provides PNP open-collector control output and offers optional voltage (1-5VDC) or current outputs. The device has an IP40 protection rating, weighs approximately 170g, and functions within an ambient temperature range of -10 to 50°C.
Pressure Sensors Transducers Feature Summary
- Integrated digital display for real-time pressure monitoring
- PNP open-collector switching output for PLC integration
- Optional analog voltage or current signal transmission
- Durable brass nickel-plated pressure port construction
Pressure Sensors Transducers Applications
- Industrial pneumatic system monitoring
- Compressed air line pressure verification
- Automation equipment pressure feedback loops
- HVAC system gas pressure measurement
Pressure Sensors Transducers Procurement Notes
Verify the specific suffix codes against official Autonics documentation to confirm interface type, cable length, and output configuration. Ensure the process medium matches the specified compatibility for air and non-corrosive gases only. Confirm that the operating voltage and load requirements align with the PNP open-collector specifications before installation.
Pressure Sensors Transducers Selection Notes
Select this model when a digital readout is required alongside standard industrial switching signals. The NPT 1/8 thread suits smaller pipe connections common in instrumentation panels. Consider the optional analog output if continuous data logging is needed instead of simple threshold triggering. Verify environmental conditions do not exceed the specified temperature and humidity limits.
Pressure Sensors Transducers Part Context
This component belongs to the PSAN series of digital pressure sensors manufactured by Autonics. The series is characterized by compact housing made of PC and PBT materials. These sensors are engineered for general industrial automation tasks requiring reliable pressure detection and local visual indication in controlled environments.
Pressure Sensors Transducers Replacement Considerations
Publicly confirmed substitute part numbers for this specific model are not available in the provided reference data. Cross-reference with the manufacturer's current catalog for updated series designations.
