PSB-C01P-M5

Pressure Sensors Transducers Overview

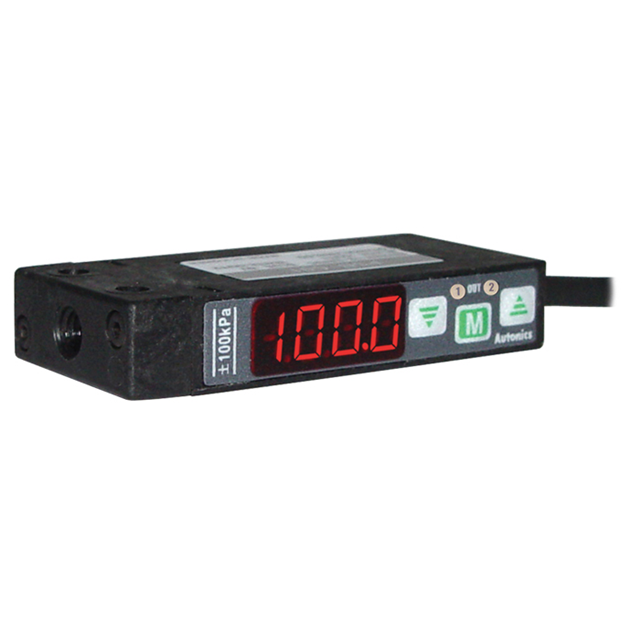

The Autonics PSB-C01P-M5 is a compact digital pressure sensor from the PSB series, designed for air and non-corrosive gases. It features a compound pressure rating of -100.0 to 100.0 kPa with an M5 pressure port. The unit includes a 2-meter cable and provides PNP open-collector control output. It operates on 12-24VDC power with a maximum current consumption of 50mA. The device offers multiple display units including kPa, bar, and psi, alongside optional voltage output. It ensures high accuracy with a repeatability error of ±0.2% F.S. and supports selectable response times.

Pressure Sensors Transducers Feature Summary

• Features high-resolution digital display with selectable pressure units for versatile monitoring
• Provides fast response time options to optimize performance for dynamic applications
• Includes integrated PNP open-collector output for direct PLC or controller interfacing
• Constructed with IXEF housing material for durability in industrial environments

Pressure Sensors Transducers Applications

• Pneumatic system pressure monitoring
• Industrial automation machinery control
• Non-corrosive gas flow regulation systems

Pressure Sensors Transducers Procurement Notes

Verify the specific model suffix to confirm the cable length and connector type match your system requirements. Ensure the operating fluid is strictly air or non-corrosive gas, as other media may damage the internal components. Confirm that the supply voltage falls within the 12-24VDC range with acceptable ripple levels. Check that the required response time setting aligns with the available options in the datasheet. Validate the mounting configuration and pressure port compatibility before finalizing the order.

Pressure Sensors Transducers Selection Notes

Select this model when a compact form factor with digital readout is required for pneumatic applications. Consider the PNP output type if your control system requires sourcing current. Evaluate the need for optional analog voltage output against the standard switching capabilities. Ensure the environmental temperature range of -10 to 50°C suits the installation site. Compare the IP40 protection rating against potential dust or moisture exposure in the operational area.

Pressure Sensors Transducers Part Context

This component belongs to the Autonics PSB series of compact digital pressure sensors. The series is characterized by high display resolution and rapid response capabilities. It is part of a broader lineup offering various pressure ranges and output configurations. The PSB series is designed for integration into smart factory automation solutions, providing reliable sensing for building efficient production processes.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes are not explicitly listed in the provided documentation. Verify compatibility with existing panel brackets or mounting hardware if replacing from a different series. Ensure the replacement unit matches the M5 pressure port interface and 2-meter cable length requirement. Cross-check the electrical specifications, particularly the PNP output polarity and supply voltage tolerance.
