PSDH3060CCL1_T0_00001

Overview

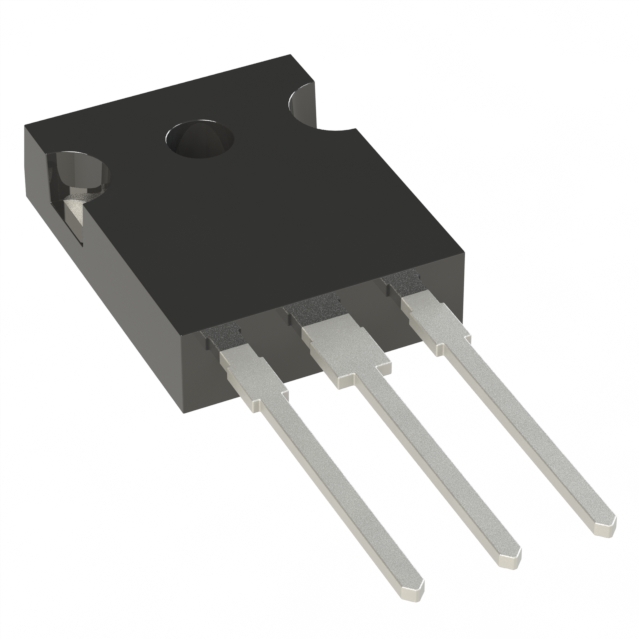

The PSDH3060CCL1 is a dual common cathode Optima Diode manufactured by Panjit International Inc. in a TO-247AD-3LD package. It features a repetitive peak reverse voltage of 600 V and a DC blocking voltage of 600 V. The device supports a forward current of 15 A per leg (30 A total) at a case temperature of 135°C, with a maximum power dissipation of 125 W. Typical electrical characteristics include a forward voltage drop of 1.3 V at 15 A and a reverse recovery time of 70 ns at 125°C. The junction temperature range spans from -55°C to 150°C.

Feature Summary

• Optimized trade-off performance between forward voltage and reverse recovery time
• Soft recovery characteristic designed for better electromagnetic interference management
• High junction temperature capability up to 150°C

Applications

• Power Factor Correction (PFC)
• Uninterruptible Power Supplies (UPS)
• Photovoltaic Inverters
• Electric Vehicle Charging Stations
• Welding Equipment

Procurement Notes

Verify the specific ordering suffix matches the required packaging configuration. Confirm that the component meets RoHS 2.0 compliance standards and utilizes green molding compound as specified. Ensure thermal management designs account for the stated thermal resistance and power dissipation limits under actual operating conditions.

Selection Notes

Select this component for high-frequency switching applications requiring low conduction losses and controlled reverse recovery behavior. Evaluate the softness factor to ensure compatibility with system EMI requirements. Verify that the TO-247AD-3LD package dimensions fit the target PCB layout and that the thermal interface can maintain the case temperature within rated limits.

Part Context

This part belongs to Panjit's Optima Diode series, which focuses on balancing forward voltage drop and reverse recovery speed. It serves as a fast recovery rectifier suitable for medium-to-high power industrial and automotive electronics. The dual common cathode configuration allows for use in bridge or half-bridge topologies.

Replacement Considerations

PSDB3060L1-T0-00001

FAQ

What is the typical reverse recovery time at elevated temperatures?

At a junction temperature of 125°C, the typical reverse recovery time is 70 ns.

How is the forward current rated for this dual diode?

The forward current is rated at 15 A per leg, totaling 30 A for both legs combined, measured at a case temperature of 135°C.

Does the device exhibit hard or soft recovery?

The device features a soft recovery characteristic, with a typical softness factor of 1.65 at 25°C and 0.75 at 125°C.
