PSQ-C01CU-R1/8

Pressure Sensors Transducers Overview

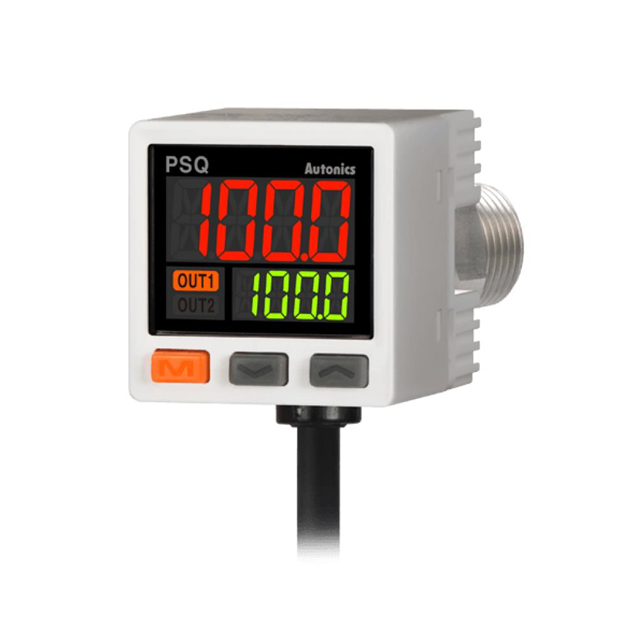

The PSQ-C01CU-R1/8 is a two-segment digital pressure sensor designed for air and non-corrosive gases. It features a composite pressure type with an R1/8 rear interface. The unit operates on 12-24VDC power with a maximum current consumption of 50mA (70mA for current output). It provides configurable NPN or PNP collector open outputs, alongside optional analog voltage (1-5VDC) or current (DC4-20mA) signals. The device supports multiple display units including MPa, kPa, bar, and psi, with a rated pressure range of -100 to 1,000kPa. It offers selectable response times from 2.5ms to 5,000ms and maintains a repeatability error of ±0.2% F.S.

Pressure Sensors Transducers Feature Summary

• Features a two-segment digital display for direct pressure reading in various units such as MPa, kPa, and psi.
• Offers flexible control output options, allowing selection between NPN/PNP collector open outputs or analog voltage/current signals via parameter settings.
• Supports adjustable response time settings ranging from 2.5ms to 5,000ms to suit different application speeds.
• Includes external input functions for automatic SHIFT, REMOTE ZERO, and HOLD operations.

Pressure Sensors Transducers Applications

• Monitoring air pressure in pneumatic systems
• Measuring non-corrosive gas pressure in industrial equipment
• Integrating with PLCs requiring NPN/PNP or analog signal inputs

Pressure Sensors Transducers Procurement Notes

Verify the specific output configuration required, as the model allows selection between NPN/PNP digital outputs and analog signals during parameter setup. Confirm the cable type, as this variant includes a 2-meter connector cable. Ensure the operating environment remains within the specified temperature range of -10°C to 50°C without freezing or condensation to maintain IP40 protection integrity.

Pressure Sensors Transducers Selection Notes

Select this model when both digital switching and analog monitoring capabilities are needed within a single compact unit. The wide rated pressure range of -100 to 1,000kPa accommodates vacuum and low-pressure applications. Choose based on the required interface direction, as this model utilizes a rear port connection suitable for panel mounting or space-constrained installations.

Pressure Sensors Transducers Part Context

This component belongs to the PSQ series of digital pressure sensors, characterized by their dual-segment displays and versatile output configurations. The series is engineered for general industrial automation, providing reliable pressure measurement for fluids like air and non-corrosive gases. It serves as a bridge between physical pressure processes and electronic control systems through its configurable signal outputs.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
