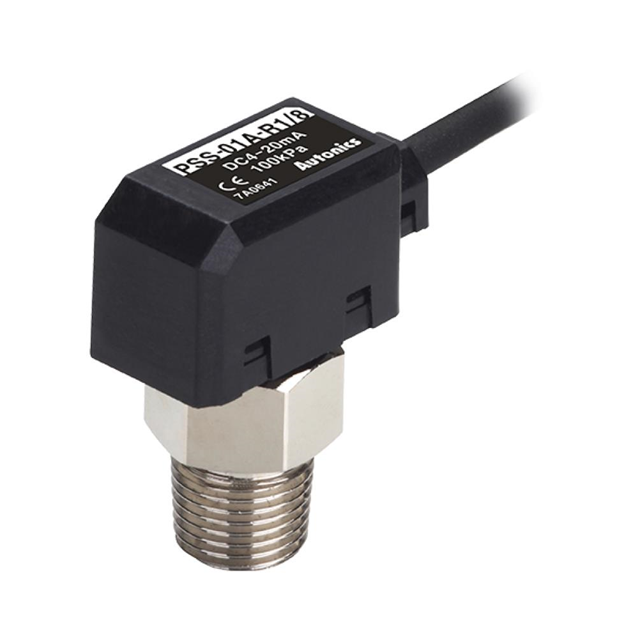

PSS-V01A-R1/8

$86.40

Description：SENSOR 14.69PSI 1/8" .02A
Series：PSS
Mfr：Autonics
Package：Box

SKU:01872ce8adfd Category: Pressure Sensors, Transducers Brand: Autonics.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PSS-V01A-R1/8 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Autonics. Its product description is SENSOR 14.69PSI 1/8" .02A. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PSS-V01A-R1/8

Description：SENSOR 14.69PSI 1/8" .02A
Series：PSS
Mfr：Autonics
Package：Box
Applications：-
Pressure Type：-
Operating Pressure：14.7PSI (101.33kPa)
Output Type：Analog Current
Output：4 ~ 20 mA
Accuracy：-
Voltage - Supply：12V ~ 24V
Port Size：Male - 1/8" (3.18mm) R
Port Style：Threaded
Features：-
Termination Style：Cable Leads
Maximum Pressure：29.38PSI (202.6kPa)
Operating Temperature：0°C ~ 50°C (TA)
Mounting Type：-
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PSS-V01A-R1/8

PSS-V01A-R1/8

Pressure Sensors Transducers Overview

The Autonics PSS-V01A-R1/8 is a compact, non-indicating pressure sensor designed for negative pressure applications. It features an R1/8 pressure interface and measures a rated range of 0.0 to -101.3 kPa. The device operates on a 12-24VDC power supply with a maximum current consumption of 15mA. It provides an analog voltage output ranging from 1 to 5VDC. Constructed with PBT front and rear housings and a nickel-plated brass pressure interface, it offers IP40 protection. The unit weighs approximately 50g net and functions within an ambient temperature range of 0 to 50°C.

Pressure Sensors Transducers Feature Summary

Compact rectangular design suitable for limited installation spaces
Direct connection capability with HMIs, PCs, and PLCs via analog voltage output
Integrated power reverse polarity protection circuit

Pressure Sensors Transducers Applications

Pneumatic system monitoring
Industrial automation control panels
HVAC pressure detection

Pressure Sensors Transducers Procurement Notes

Verify the specific model suffix against official Autonics documentation to confirm the pressure type (negative vs. gauge) and output signal (voltage vs. current). Ensure the application fluid is air or non-corrosive gas, as specified in the datasheet. Confirm that the required pressure interface matches the R1/8 standard provided in this part number before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this component when a small form factor is required for negative pressure measurement in pneumatic systems. The R1/8 interface suits standard tubing connections. Consider the 1-5VDC output compatibility with downstream controllers. Verify environmental conditions stay within the specified humidity and temperature limits to ensure reliable operation without condensation or freezing risks.

Pressure Sensors Transducers Part Context

This model belongs to the PSS series of analog pressure sensors by Autonics. The series utilizes a rectangular housing design available in various pressure ranges and interface types. This specific variant focuses on negative pressure measurement using a threaded port configuration, distinguishing it from reducer or M3 port versions within the same product family.

Pressure Sensors Transducers Replacement Considerations

Consult official Autonics cross-reference lists for direct substitutes. Generic industrial pressure sensors may not match the specific R1/8 interface or 1-5VDC output characteristics. Verify dimensional compatibility if space constraints are critical.
