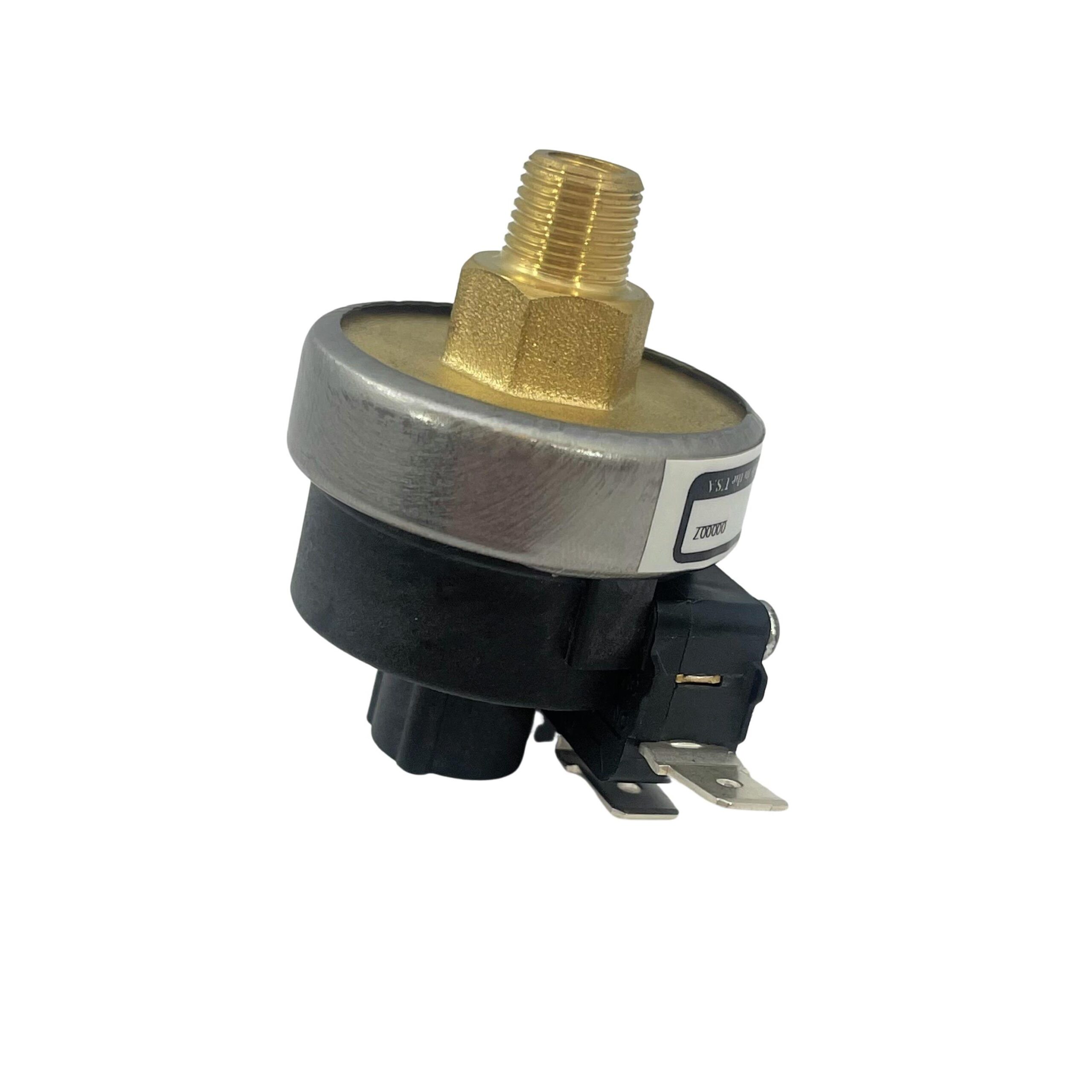

PSW01-1-082G16O is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Phoenix Sensors. Its product description is SWITCH 7PSI SPST-NO 1/8"NPT. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PSW01-1-082G16O
- Description：SWITCH 7PSI SPST-NO 1/8"NPT
- Series：PSW01
- Mfr：Phoenix Sensors
- Package：Bulk
- Applications：-
- Pressure Type：Switch
- Operating Pressure：3.1PSI ~ 7PSI (21.37kPa ~ 48.26kPa)
- Output Type：SPST-NO
- Output：-
- Accuracy：-
- Voltage - Supply：-
- Port Size：Male - 1/8" (3.18mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：Screw Terminal
- Maximum Pressure：500PSI (3447.38kPa)
- Operating Temperature：-25°C ~ 125°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PSW01-1-082G16O
Pressure Sensors Transducers Overview
The PSW01-1-082G16O is a steam pressure switch from the Phoenix Sensors PSW01 series, designed for control applications with higher current capacity. It features a male 1/8" NPT process connection and a threaded cylinder package. The device operates within a pressure range of 3.1 PSI to 7 PSI (21.37 kPa to 48.26 kPa) and withstands a maximum pressure of 500 PSI (3447.38 kPa). It supports an operating temperature range of -25°C to 125°C and utilizes screw terminal termination.
Pressure Sensors Transducers Feature Summary
- Designed for high-current capacity control in steam applications
- Robust threaded cylinder construction for industrial durability
- Integrated screw terminal termination for secure wiring
Pressure Sensors Transducers Applications
- Steam cleaner systems
- Steam iron manufacturing
- Industrial steam pressure monitoring
Pressure Sensors Transducers Procurement Notes
Verify the specific model suffix against official Phoenix Contact documentation to confirm exact switching characteristics and electrical ratings. Ensure the process connection type matches system requirements. Confirm RoHS compliance status through current datasheets before integration into regulated environments.
Pressure Sensors Transducers Selection Notes
Select this component when high current handling is required for steam pressure control. The 1/8" NPT thread suits standard industrial piping. Verify that the 500 PSI maximum pressure rating exceeds system peaks. Check temperature limits against operational extremes.
Pressure Sensors Transducers Part Context
This part belongs to the PSW01 series of steam pressure switches manufactured by Phoenix Sensors. The series is engineered for demanding environments involving steam, offering reliable switching performance. The specific model indicates particular pressure thresholds and connection geometry within this product line.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for direct equivalents or functional replacements with matching pressure ranges and connection types.
