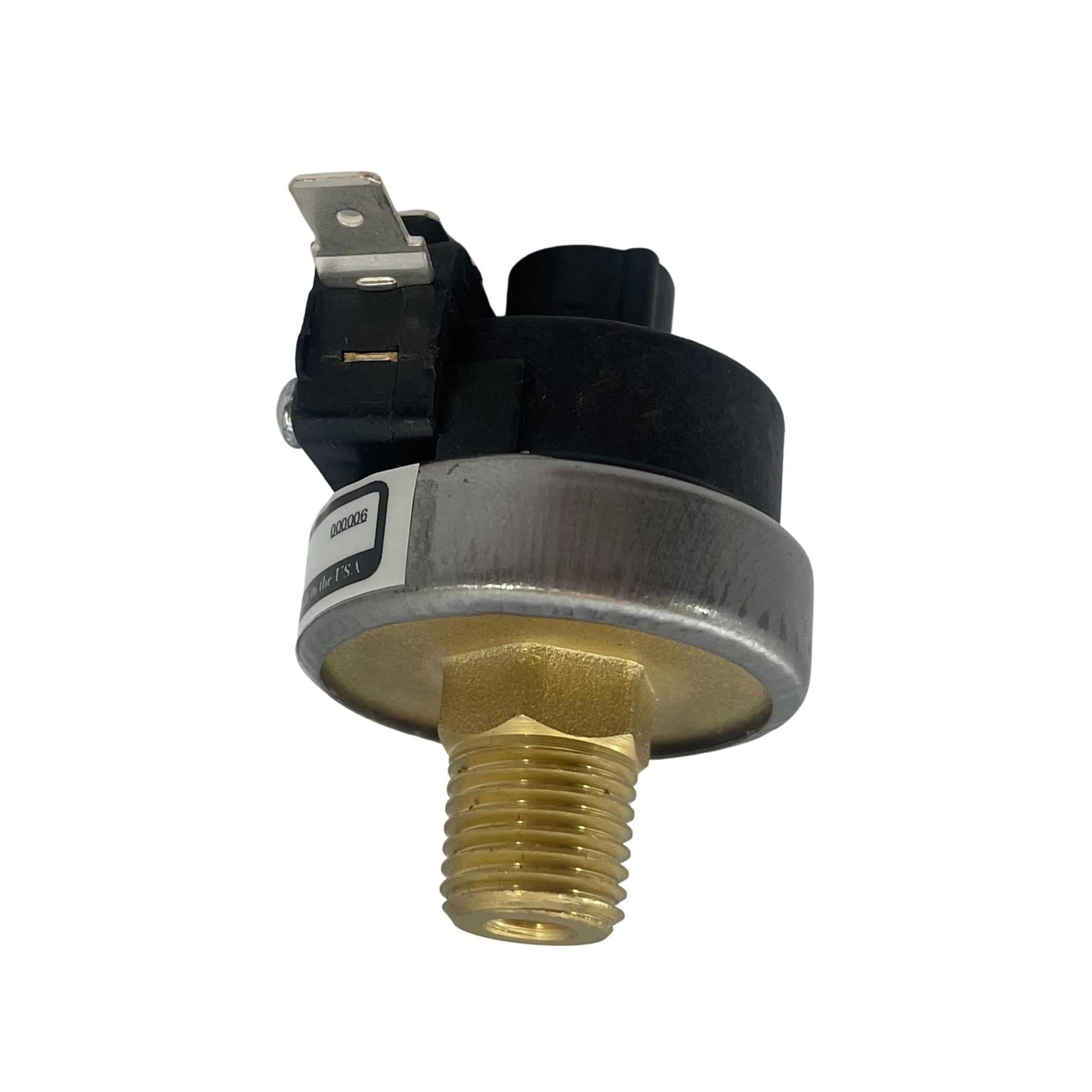

PSW01-2-082G26O is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Phoenix Sensors. Its product description is SWITCH 7PSI SPST-NO 1/4"NPT. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PSW01-2-082G26O
- Description：SWITCH 7PSI SPST-NO 1/4"NPT
- Series：PSW01
- Mfr：Phoenix Sensors
- Package：Bulk
- Applications：-
- Pressure Type：Switch
- Operating Pressure：3.1PSI ~ 7PSI (21.37kPa ~ 48.26kPa)
- Output Type：SPST-NO
- Output：-
- Accuracy：-
- Voltage - Supply：-
- Port Size：Male - 1/4" (6.35mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：Screw Terminal
- Maximum Pressure：500PSI (3447.38kPa)
- Operating Temperature：-25°C ~ 125°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PSW01-2-082G26O
Pressure Sensors Transducers Overview
The PSW01-2-082G26O is an adjustable water pressure switch from the PSW01 series, engineered for applications requiring higher current capacity. It provides an electromechanical output for pump control and system protection. The device features a male 1/4 inch (6.35mm) NPT threaded cylinder connection. Its switching range is specified as 3.1 PSI to 7 PSI, which corresponds to 21.37 kPa to 48.26 kPa.
Pressure Sensors Transducers Feature Summary
- Electromechanical pressure switch output designed for pump control and system protection
- Adjustable switching range capability for precise pressure control requirements
- Constructed with a threaded cylinder body featuring a male 1/4 inch NPT port
Pressure Sensors Transducers Applications
- Steam cleaner systems
- Steam iron units
- Pump control circuits
- System protection mechanisms
Pressure Sensors Transducers Procurement Notes
Verify the specific model suffix against official Phoenix Sensors documentation to confirm the exact pressure range and connection type. Ensure the application environment is compatible with the electromechanical design and current capacity specifications. Confirm that the 1/4 inch NPT thread matches the system interface requirements before procurement.
Pressure Sensors Transducers Selection Notes
Select this component when high current capacity is required for pressure control tasks. The adjustable nature of the switch allows for customization within the specified operational limits. Consider the mechanical connection type and environmental suitability for steam or water applications during the selection process.
Pressure Sensors Transducers Part Context
This part belongs to the PSW01 series of adjustable water pressure switches. The series is characterized by its ability to handle higher current loads compared to standard switches. It is primarily utilized in OEM applications where reliable pressure monitoring and control are critical for system safety and operation.
Pressure Sensors Transducers Replacement Considerations
Consult official Phoenix Sensors documentation for confirmed substitute part numbers. Verify compatibility regarding pressure ranges, electrical ratings, and physical dimensions before substitution.
