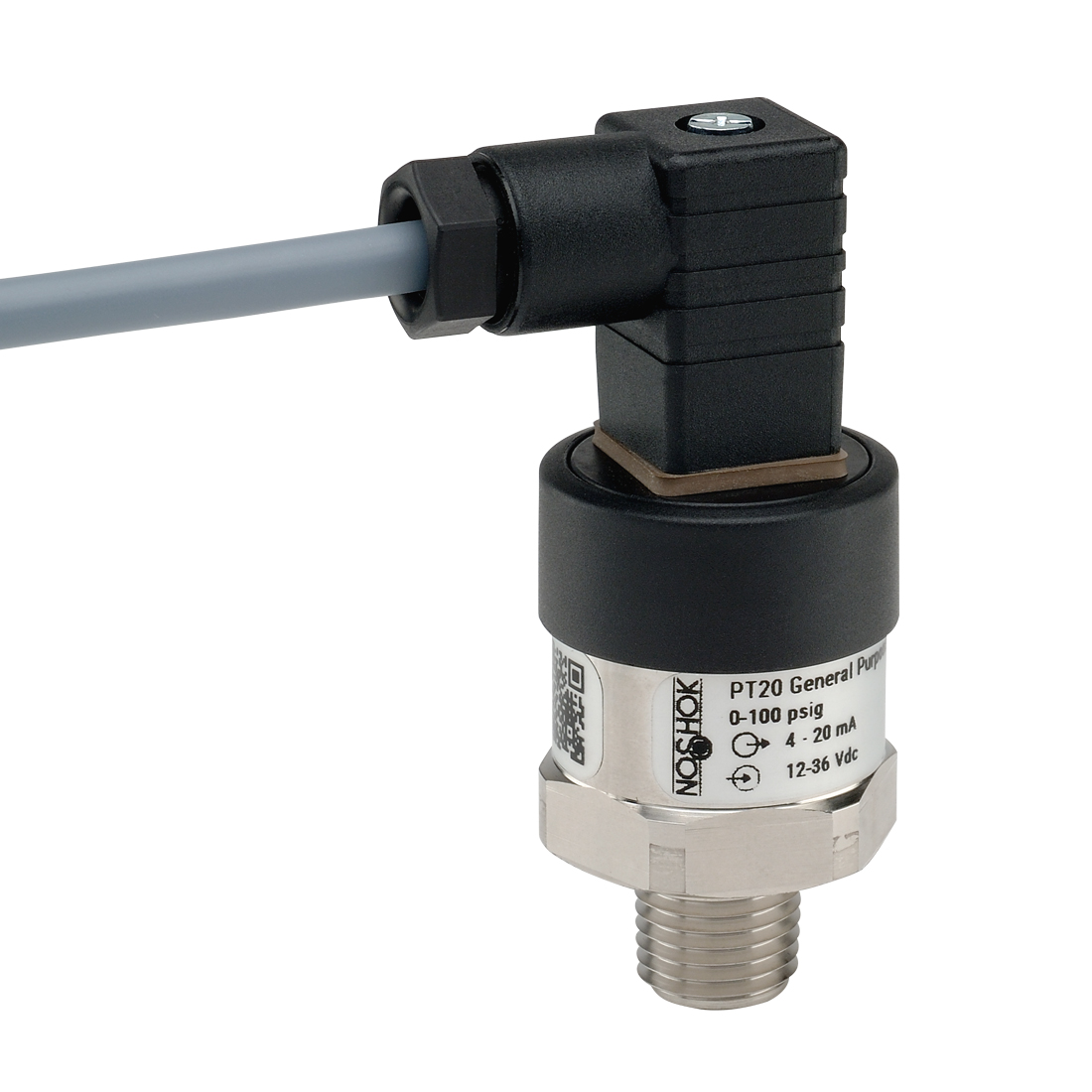

PT20-100psig-1-1-2-17-CC is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists NOSHOK, Inc.. Its product description is General Purpose Fixed Range Pres. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PT20-100psig-1-1-2-17-CC
- Description：General Purpose Fixed Range Pres
- Series：PT20
- Mfr：NOSHOK, Inc.
- Package：Tape & Box (TB)
- Applications：Industrial
- Pressure Type：Gauge
- Operating Pressure：0PSI ~ 100PSI (0kPa ~ 689.48kPa)
- Output Type：Analog Current, Analog Voltage
- Output：4mA ~ 20mA
- Accuracy：±0.5%
- Voltage - Supply：-
- Port Size：Male - 1/4" (6.35mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：DIN EN 175301-803 Form C with 3' Cable
- Maximum Pressure：-
- Operating Temperature：-30°C ~ 100°C
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PT20-100psig-1-1-2-17-CC
Pressure Sensors Transducers Overview
The NOSHOK PT20-100psig-1-1-2-17-CC is an industrial general-purpose fixed-range pressure transmitter designed for gauge pressure measurement. It features a 0 to 100 psi operating range with a 4 mA to 20 mA analog current output type. The device exhibits a non-linearity of 0.5% of span, calculated using the best fit straight line method per IEC 61298-2 standards at reference conditions. This two-wire configuration supports reliable signal transmission in industrial environments requiring precise pressure monitoring.
Pressure Sensors Transducers Feature Summary
- Provides analog current output for industrial pressure sensing applications
- Utilizes best fit straight line non-linearity calculation for accuracy
- Supports two-wire configuration for simplified installation
Pressure Sensors Transducers Applications
- Industrial process monitoring
- General purpose pressure transmission
- Fixed range pressure sensing systems
Pressure Sensors Transducers Procurement Notes
Verify the specific model suffixes against official NOSHOK documentation to ensure correct output type and connection specifications. Confirm that the gauge pressure range aligns with system requirements before procurement. Cross-reference the part number with manufacturer datasheets to validate technical parameters and compliance standards.
Pressure Sensors Transducers Selection Notes
Select this transmitter when a 0 to 100 psi gauge range is required for industrial applications. Consider the 4 mA to 20 mA output compatibility with existing control systems. Evaluate the 0.5% span non-linearity specification against application tolerance requirements. Ensure the two-wire interface matches available wiring infrastructure.
Pressure Sensors Transducers Part Context
This component belongs to the PT20 series of industrial pressure sensors manufactured by NOSHOK. The series includes various models with different pressure ranges and output configurations. The PT20 series is designed for general-purpose use in industrial settings, offering fixed-range pressure transmission capabilities.
Pressure Sensors Transducers Replacement Considerations
Consult NOSHOK official documentation for direct substitute part numbers within the PT20 series. Verify compatibility of pressure range, output signal, and physical connections before substitution. Generic replacements may not match the specific non-linearity or accuracy specifications.
