Product Detailed Parameters
- Description：General Purpose Fixed Range Pres
- Series：PT20
- Mfr：NOSHOK, Inc.
- Package：Bulk
- Applications：Industrial Automation
- Pressure Type：Gauge
- Operating Pressure：100PSI (689.48kPa)
- Output Type：Analog Current
- Output：4 ~ 20 mA
- Accuracy：±0.5%
- Voltage - Supply：-
- Port Size：Male - 1/4" (6.35mm) NPT
- Port Style：Threaded
- Features：Temperature Compensated
- Termination Style：Quick Connects
- Maximum Pressure：200PSI (1378.95kPa)
- Operating Temperature：0°C ~ 80°C
- Mounting Type：-
- Package / Case：Cylinder, Threaded
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

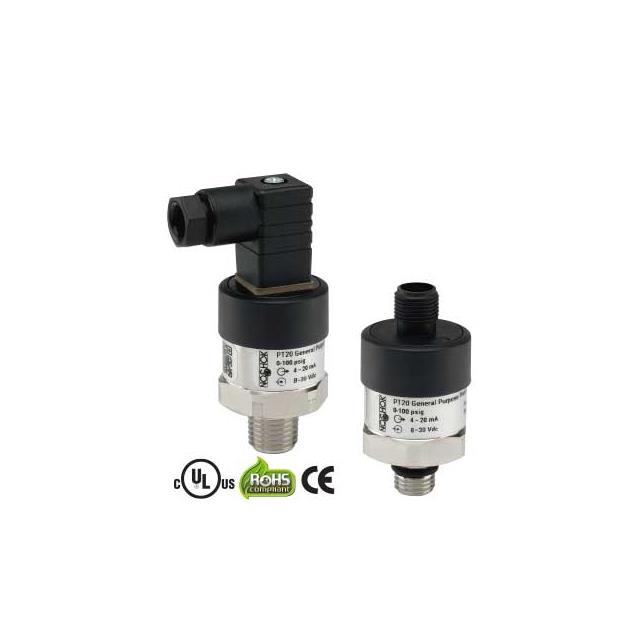

The NOSHOK PT20-100PSIG-1-1-2-8 is a general-purpose fixed-range pressure transmitter designed for industrial applications. It features a measurement range of 0 to 100 psig with an accuracy of ±0.5% of span. The device provides a 4 mA to 20 mA output signal via a two-wire configuration. It utilizes a 1/4 NPT male process connection and conforms to the DIN Form A electrical interface standard.
Feature Summary
- Fixed-range pressure measurement capability
- Standardized 4-20 mA analog output signal
- DIN Form A electrical interface compatibility
Applications
- General industrial process monitoring
- Hydraulic system pressure tracking
- HVAC equipment integration
Procurement Notes
Verify that the specific part number matches the required pressure range and electrical interface standards for your application. Confirm the process connection type and output signal requirements before ordering. Ensure compatibility with existing control systems and mounting configurations to avoid installation issues.
Selection Notes
Select this model when a fixed-range gauge pressure transmitter is needed for general industrial use. Consider the ±0.5% accuracy specification for typical process control needs. Evaluate the 1/4 NPT connection size against available port threads. Check DIN Form A compatibility with existing wiring harnesses and terminal blocks.
Part Context
This component belongs to the NOSHOK PT20 Series, which offers general-purpose fixed-range pressure transmitters. The series provides various pressure ranges and interface options to suit different industrial environments. The PT20 line focuses on reliable performance and straightforward integration into standard monitoring systems.
Replacement Considerations
Cross-reference with other PT20 variants for different pressure ranges or interface forms. Verify if alternative models offer updated accuracy or response time specifications. Ensure any substitute maintains the same physical dimensions and electrical connections for direct replacement.
