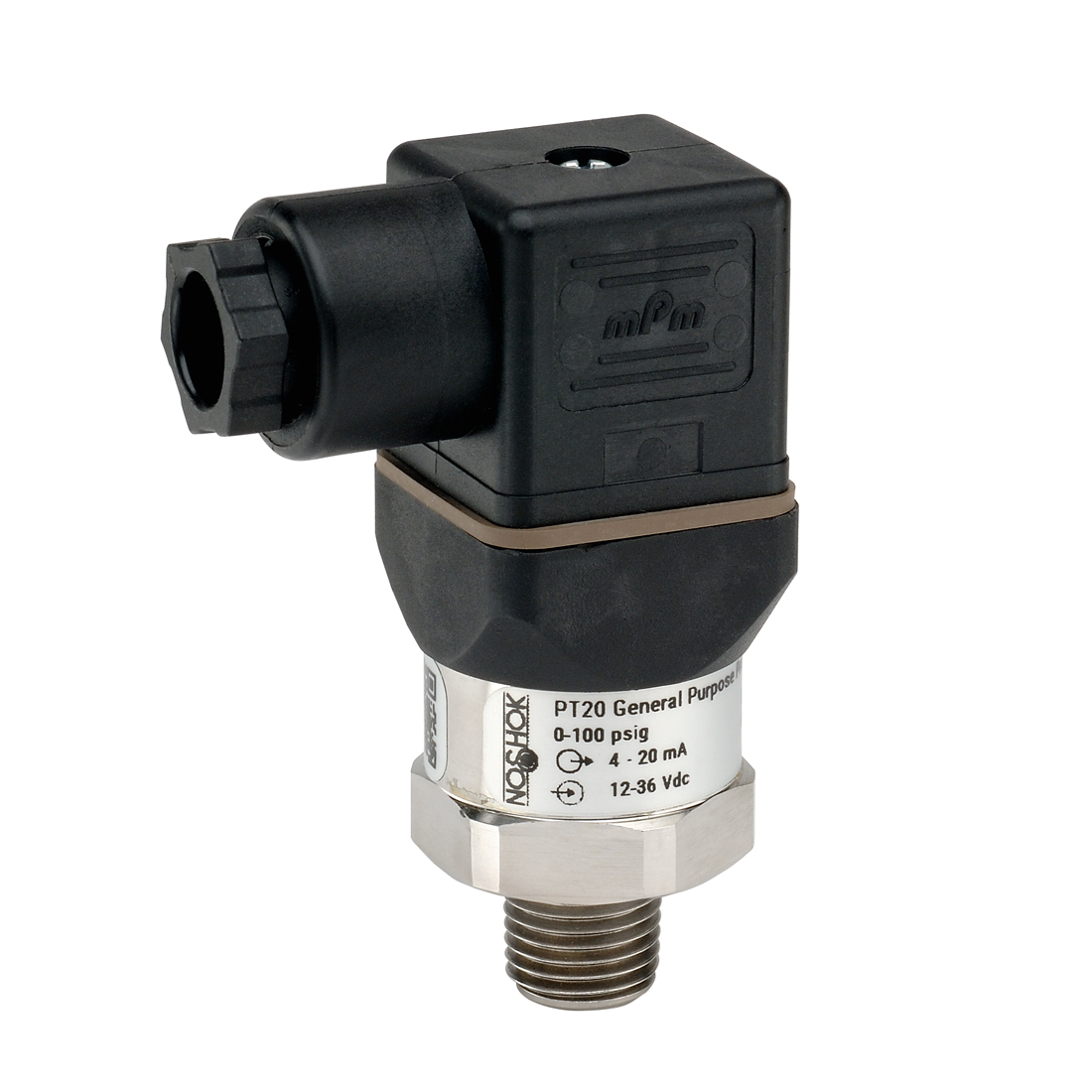

PT20-100psig-1-13-2-8

$130.77

Description：General Purpose Fixed Range Pres
Series：PT20
Mfr：NOSHOK, Inc.
Package：Tape & Box (TB)

SKU:7bf4db308899 Category: Pressure Sensors, Transducers Brand: NOSHOK, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：General Purpose Fixed Range Pres
Series：PT20
Mfr：NOSHOK, Inc.
Package：Tape & Box (TB)
Applications：Industrial
Pressure Type：Gauge
Operating Pressure：0PSI ~ 100PSI (0kPa ~ 689.48kPa)
Output Type：Analog Current, Analog Voltage
Output：0.5 V ~ 4.5 V
Accuracy：±0.5%
Voltage - Supply：-
Port Size：Male - 1/4" (6.35mm) NPT
Port Style：Threaded
Features：-
Termination Style：DIN EN 175301-803 Form A
Maximum Pressure：-
Operating Temperature：-30°C ~ 100°C
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PT20-100psig-1-13-2-8

Overview

The NOSHOK PT20-100psig-1-13-2-8 is a general-purpose fixed-range pressure transmitter designed for gauge pressure applications. It features a measurement range of 0 to 100 PSI (0 to 689.48 kPa) with an electrical output of 0.5 V to 4.5 V. The device utilizes a male 1/4 inch (6.35 mm) NPT process connection and operates within a temperature range of -40°F to 200°F (-40°C to 93°C). Key performance specifications include an accuracy of ±0.50% of span and a response time of ≤4ms, adhering to IEC 61298-2 non-linearity standards.

Feature Summary

Provides a stable analog voltage signal proportional to applied pressure
Features a rugged stainless steel construction suitable for industrial environments
Delivers high-speed response characteristics for dynamic monitoring

Applications

HVAC system pressure monitoring
Industrial hydraulic and pneumatic circuit control
Compressed air system regulation

Procurement Notes

Verify the specific model suffixes against official NOSHOK documentation to ensure correct process connection type, electrical output configuration, and media compatibility. Confirm that the required pressure range and environmental operating conditions align with the component's certified specifications before finalizing procurement orders.

Selection Notes

Select this transmitter when a low-cost, general-purpose solution is required for gauge pressure monitoring in standard industrial settings. Ensure the 0.5 V to 4.5 V output signal is compatible with the receiving PLC or data acquisition hardware. Verify that the 1/4 NPT port matches the existing piping interface requirements.

Part Context

This component belongs to the NOSHOK PT20 series of general-purpose fixed-range transmitters. This family includes variants with different pressure ranges, such as absolute or compound scales, and various electrical outputs. The PT20 line is characterized by its cost-effective design and reliability for basic pressure sensing tasks across multiple industries.

Replacement Considerations

Direct substitutes may include other models from the NOSHOK PT20 series with matching 100 PSI gauge ranges and identical 1/4 NPT connections. Cross-brand replacements require careful verification of output signal types, physical dimensions, and mounting configurations to ensure functional equivalence.
