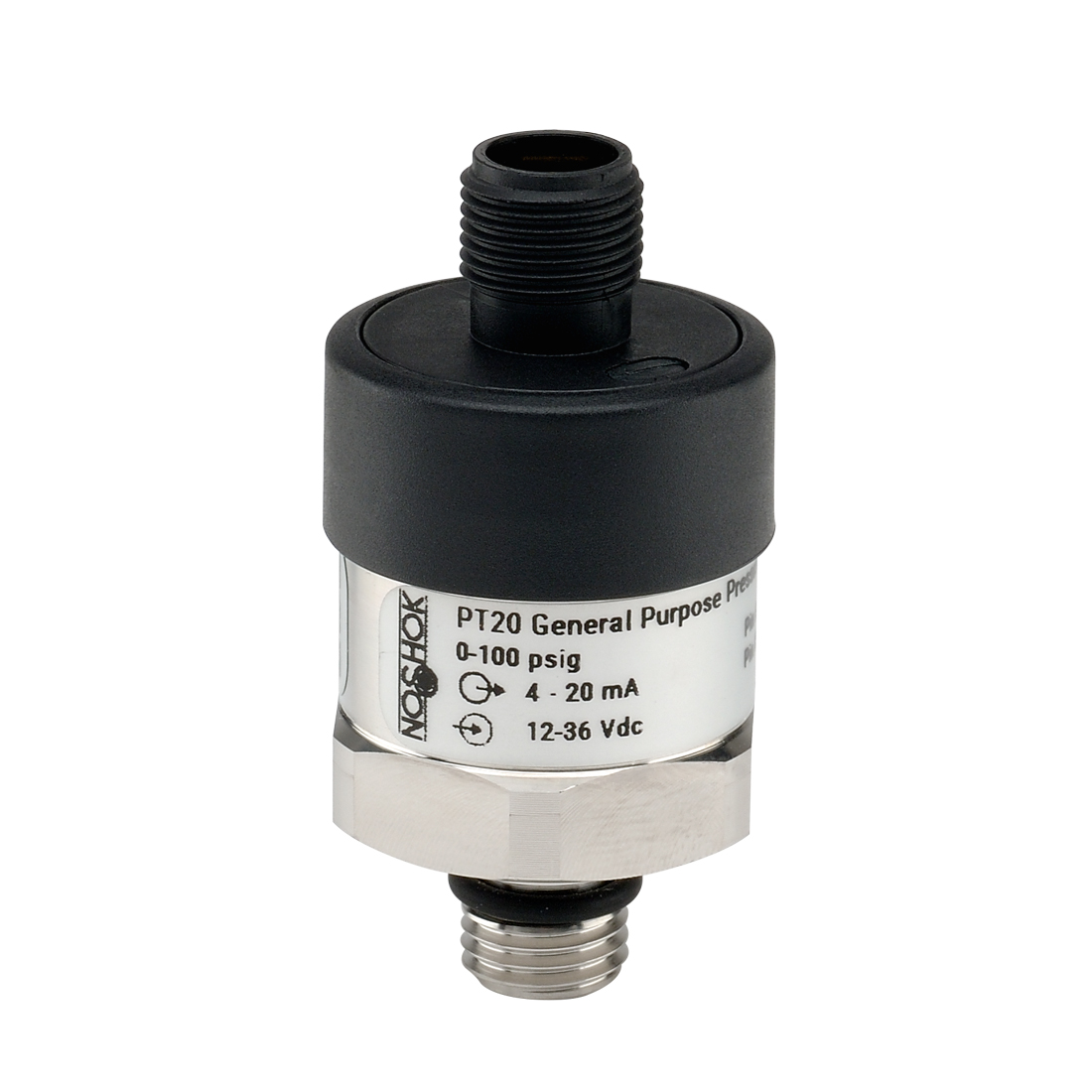

PT20-100psig-1-2-2-25-CC

$211.63

Description：General Purpose Fixed Range Pres
Series：PT20
Mfr：NOSHOK, Inc.
Package：Tape & Box (TB)

SKU:7a04bac4fe60 Category: Pressure Sensors, Transducers Brand: NOSHOK, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：General Purpose Fixed Range Pres
Series：PT20
Mfr：NOSHOK, Inc.
Package：Tape & Box (TB)
Applications：Industrial
Pressure Type：Gauge
Operating Pressure：0PSI ~ 100PSI (0kPa ~ 689.48kPa)
Output Type：Analog Current, Analog Voltage
Output：0 V ~ 5 V
Accuracy：±0.5%
Voltage - Supply：-
Port Size：Male - 1/4" (6.35mm) NPT
Port Style：Threaded
Features：-
Termination Style：M12x1, 4 Pin
Maximum Pressure：-
Operating Temperature：-30°C ~ 100°C
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PT20-100psig-1-2-2-25-CC

Overview

The NOSHOK PT20-100psig-1-2-2-25-CC is a high-accuracy pressure transmitter from the PT Series, designed to replace legacy 100, 200, 300, and 615 series models. It features a measurement range of 0 to 100 psig with a 1/2-18 NPT process connection. The unit utilizes a 2-wire configuration for power and signal transmission, delivering a standard 4-20 mA analog output. Constructed with a 316 stainless steel wetted material, it ensures durability in industrial environments. The device supports general manufacturing applications requiring precise fluid pressure monitoring.

Feature Summary

Replaces legacy NOSHOK 100, 200, 300, and 615 series transmitters
High-accuracy analog signal transmission
Corrosion-resistant 316 stainless steel construction

Applications

General manufacturing process control
Fluid power systems monitoring
Chemical processing equipment

Procurement Notes

Verify the specific model suffix against the official PT Series Part Number Crossover Tool to ensure compatibility with existing legacy installations. Confirm that the required process connection and material specifications match the application requirements before ordering. Ensure the supplier provides manufacturer-backed warranties and verified authenticity for all instrumentation purchases.

Selection Notes

Select this model when replacing older NOSHOK series units without redesigning the entire system. Consider the 316 stainless steel wetted parts for compatibility with various fluids. Evaluate the 4-20 mA output requirement against existing PLC or DCS input cards. Verify the 100 psig range meets the maximum operating pressure of the target system.

Part Context

This component belongs to the NOSHOK PT Series, which consolidates multiple legacy product lines into a unified platform. The series serves engineers and procurement managers across oil & gas, chemical processing, and food & beverage sectors. It represents an upgrade path for facilities maintaining older instrumentation while seeking improved accuracy and reliability.

Replacement Considerations

Use the PT Series Part Number Crossover Tool to identify direct replacements for legacy 100, 200, 300, and 615 series part numbers. Ensure mechanical fit and electrical interface compatibility during the transition.
