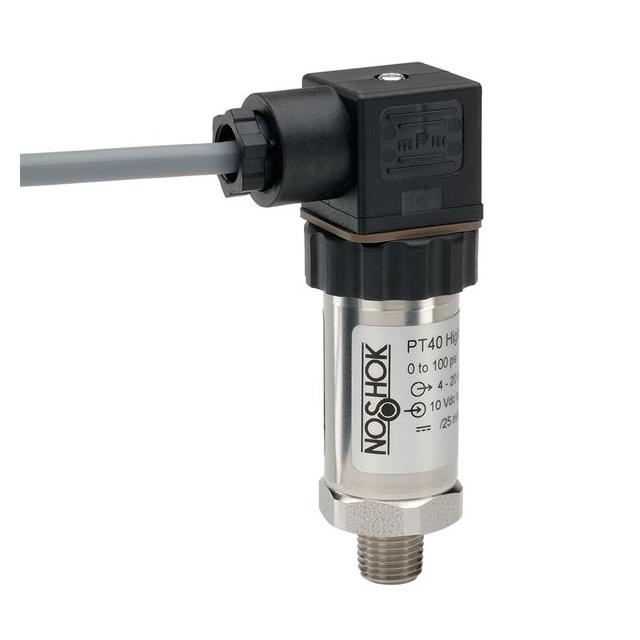

PT40-1500psig-2-1-2-18-ST8-CC

$499.61

Description：High Accuracy Fixed Range Pressu
Series：PT40
Mfr：NOSHOK, Inc.
Package：Bulk

SKU:c7bd5dda8b89 Category: Pressure Sensors, Transducers Brand: NOSHOK, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PT40-1500psig-2-1-2-18-ST8-CC is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists NOSHOK, Inc.. Its product description is High Accuracy Fixed Range Pressu. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for PT40-1500psig-2-1-2-18-ST8-CC

Description：High Accuracy Fixed Range Pressu
Series：PT40
Mfr：NOSHOK, Inc.
Package：Bulk
Applications：Industrial
Pressure Type：Gauge
Operating Pressure：0PSI ~ 1500PSI (0kPa ~ 10342.13kPa)
Output Type：Analog Current
Output：4 ~ 20 mA
Accuracy：±0.125%
Voltage - Supply：10V ~ 30V
Port Size：Male - 1/4" (6.35mm) NPT
Port Style：Threaded
Features：-
Termination Style：DIN EN 175301-803 Form A with 3' Cable
Maximum Pressure：1500PSI (10342.13kPa)
Operating Temperature：-30°C ~ 100°C
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for PT40-1500psig-2-1-2-18-ST8-CC

PT40-1500psig-2-1-2-18-ST8-CC

Pressure Sensors Transducers Overview

The NOSHOK PT40-1500psig-2-1-2-18-ST8-CC is a high-accuracy pressure transmitter belonging to the PT Series. It replaces legacy 100, 200, and 615 series models. The device features a 1500 psig measurement range with a 2-1-2 process connection configuration. It utilizes an ST8 signal output type and includes a CC case configuration. This component provides industrial-grade pressure measurement for fluid power and general manufacturing applications.

Pressure Sensors Transducers Feature Summary

Replaces legacy 100, 200, and 615 series pressure transmitters
High accuracy performance within the PT Series line
Designed for extreme conditions up to 85,000 psi ratings

Pressure Sensors Transducers Applications

Oil and gas industry operations
Chemical processing systems
Fluid power equipment monitoring
General manufacturing instrumentation

Pressure Sensors Transducers Procurement Notes

Verify authenticity through authorized sources. Confirm part number alignment using the official PT Series Crossover Tool. Ensure compatibility with existing system requirements before purchase. Request manufacturer-backed warranties and support documentation. Validate technical specifications against application needs.

Pressure Sensors Transducers Selection Notes

Select this model for high-accuracy pressure measurement replacing older series. Consider the 1500 psig range suitability for specific process pressures. Evaluate the ST8 output type for signal integration. Assess the CC case configuration for environmental protection. Review the 2-1-2 connection for piping compatibility.

Pressure Sensors Transducers Part Context

Part of the NOSHOK PT Series designed to streamline transitions from legacy models. Manufactured by NOSHOK Measurement Products, established in 1967. Provides full spectrum industrial measurement solutions including transducers, switches, and gauges. Supported by over 50 years of field experience and repair services.

Pressure Sensors Transducers Replacement Considerations

Use the PT Series Part Number Crossover Tool for accurate mapping from 100, 200, or 615 series parts. Verify functional equivalence before substitution. Ensure electrical and mechanical interfaces match existing installations.
