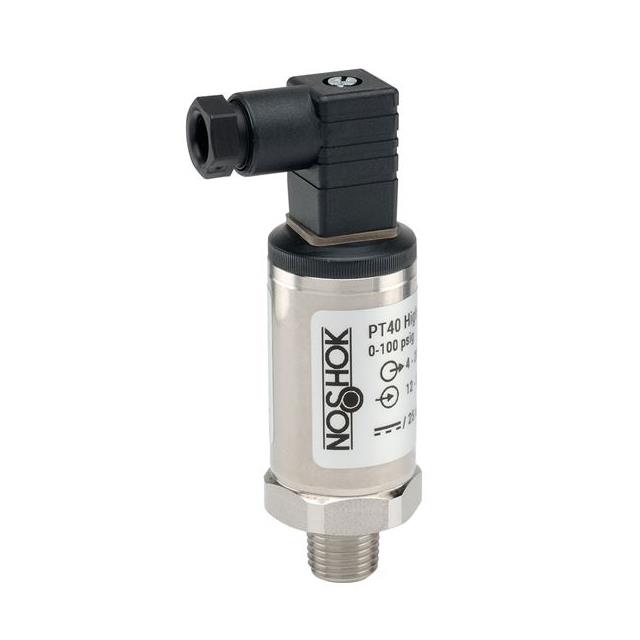

PT40-150psig-1-1-8-7-ST8-CC is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists NOSHOK, Inc.. Its product description is High Accuracy Fixed Range Pressu. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PT40-150psig-1-1-8-7-ST8-CC
- Description：High Accuracy Fixed Range Pressu
- Series：PT40
- Mfr：NOSHOK, Inc.
- Package：Bulk
- Applications：Industrial
- Pressure Type：Gauge
- Operating Pressure：0PSI ~ 150PSI (0kPa ~ 1034.21kPa)
- Output Type：Analog Current
- Output：4 ~ 20 mA
- Accuracy：±0.25%
- Voltage - Supply：10V ~ 30V
- Port Size：Male - 1/2" (12.7mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：DIN EN 175301-803 Form C
- Maximum Pressure：150PSI (1034.21kPa)
- Operating Temperature：-30°C ~ 100°C
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PT40-150psig-1-1-8-7-ST8-CC
Pressure Sensors Transducers Overview
The NOSHOK PT40-150psig-1-1-8-7-ST8-CC is a high-accuracy fixed-range pressure transmitter from the PT40 Series. It features a gauge pressure range of 150 psig. The unit utilizes an 8-pin circular connector interface and includes ST8 and CC configuration suffixes. This model replaces legacy 100, 200, and 615 series transmitters.
Pressure Sensors Transducers Feature Summary
- High-accuracy measurement capabilities for industrial applications
- Fixed-range design with specific gauge pressure limits
- Direct replacement for previous generation NOSHOK transmitter series
Pressure Sensors Transducers Applications
- Oil and gas industry monitoring
- Chemical processing systems
- Fluid power equipment
- General manufacturing instrumentation
Pressure Sensors Transducers Procurement Notes
Verify the complete part number including all suffixes to ensure correct interface and configuration. Confirm that the specified 150 psig range aligns with system requirements. Check for any specific environmental ratings associated with the ST8 and CC codes before ordering.
Pressure Sensors Transducers Selection Notes
Select this model for applications requiring high accuracy in fixed-range scenarios. Consider the PT40 series as a modern alternative to older 100, 200, and 615 series units. Ensure compatibility with existing 8-pin connector wiring setups.
Pressure Sensors Transducers Part Context
The PT40 Series represents NOSHOK's updated line of high-accuracy transmitters. It succeeds the 100, 200, 300, and 615 series, offering improved performance metrics while maintaining familiar form factors for upgrade paths in existing industrial measurement infrastructure.
Pressure Sensors Transducers Replacement Considerations
This model serves as a direct functional replacement for NOSHOK 100, 200, 300, and 615 series transmitters. Use the official PT Series Part Number Crossover Tool to verify compatibility with legacy part numbers.
