PT40-60psig-2-2-2-17-ST8-CC is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists NOSHOK, Inc.. Its product description is High Accuracy Fixed Range Pressu. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for PT40-60psig-2-2-2-17-ST8-CC
- Description：High Accuracy Fixed Range Pressu
- Series：PT40
- Mfr：NOSHOK, Inc.
- Package：Bulk
- Applications：Industrial
- Pressure Type：Gauge
- Operating Pressure：0PSI ~ 60PSI (0kPa ~ 431.69kPa)
- Output Type：Analog Voltage
- Output：0 V ~ 5 V
- Accuracy：±0.125%
- Voltage - Supply：10V ~ 30V
- Port Size：Male - 1/4" (6.35mm) NPT
- Port Style：Threaded
- Features：-
- Termination Style：DIN EN 175301-803 Form C with 3' Cable
- Maximum Pressure：60PSI (413.69kPa)
- Operating Temperature：-30°C ~ 100°C
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for PT40-60psig-2-2-2-17-ST8-CC
Pressure Sensors Transducers Overview

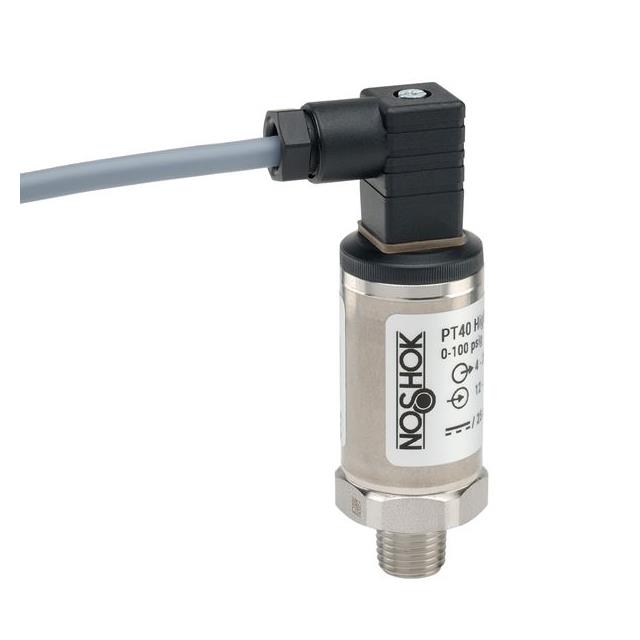

The NOSHOK PT40-60psig-2-2-2-17-ST8-CC is a high-accuracy pressure transmitter from the PT Series, designed to replace legacy 100, 200, 300, and 615 series models. It features a 60 psig pressure range with a 2-wire analog output configuration. The unit utilizes a 1/4 NPT process connection and includes an ST8 stainless steel protective shroud for mechanical durability. This component provides verified authenticity and manufacturer-backed warranties suitable for industrial measurement applications.
Pressure Sensors Transducers Feature Summary
- Replaces legacy 100, 200, 300, and 615 series transmitters
- High accuracy performance specifications
- Includes stainless steel protective shroud
- Manufacturer-backed warranty support
Pressure Sensors Transducers Applications
- Oil and gas industry operations
- Chemical processing systems
- Fluid power equipment
- General manufacturing processes
Pressure Sensors Transducers Procurement Notes
Verify part number alignment using the official PT Series Part Number Crossover Tool to ensure correct transition from legacy models. Confirm that the selected configuration matches specific application requirements for pressure range and output type. Ensure procurement through authorized sources to guarantee manufacturer-backed warranties and verified authenticity of the instrumentation.
Pressure Sensors Transducers Selection Notes
Select this model when replacing older NOSHOK series transmitters requiring high accuracy. Consider the 60 psig range and 1/4 NPT connection compatibility with existing process interfaces. Evaluate the need for the included protective shroud in environments requiring mechanical protection. Verify that the 2-wire output configuration aligns with control system input capabilities.
Pressure Sensors Transducers Part Context
This component belongs to the NOSHOK PT Series, which streamlines transitions from previous product lines including the 100, 200, 300, and 615 series. The PT Series represents the current generation of NOSHOK measurement products, offering enhanced accuracy and reliability. The brand has been established since 1967 as a provider of industrial measurement solutions.
Pressure Sensors Transducers Replacement Considerations
Use the PT Series Part Number Crossover Tool to identify equivalent replacements for legacy 100, 200, 300, and 615 series parts. Ensure functional compatibility regarding pressure range and output signal type during substitution.
