PTE7100-43AC-1E400BN

Pressure Sensors Transducers Overview

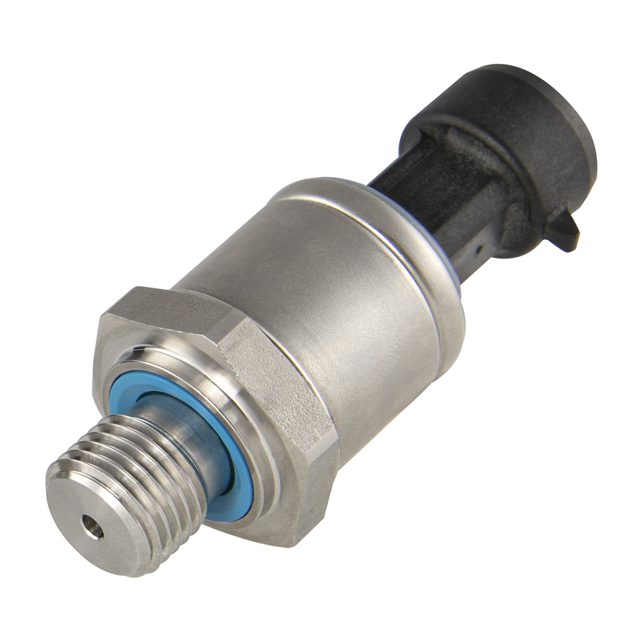

The PTE7100-43AC-1E400BN is a hermetic analog pressure sensor from the Sensata Technologies PTE7100 series, designed for general industrial applications. It features a measuring range of 0 to 400 bar (0 to 5801.51 PSI) with an operating pressure of 2900.75 PSI and a maximum pressure of 5801.51 PSI. The device provides an analog voltage output ranging from 1V to 5V, powered by an 8V to 32V supply. It utilizes a BSPP port interface and offers an accuracy of ±1.5%. The sensor operates within a temperature range of -40°C to 100°C and meets EMC standards IEC 61326-1 and EN 61326-2-3.

Pressure Sensors Transducers Feature Summary

• Hermetic construction ensures reliability in demanding environments
• High dielectric strength of 500 VAC for electrical safety
• Enhanced radiated immunity compliant with EMC standards
• Analog voltage output suitable for standard industrial interfaces

Pressure Sensors Transducers Applications

• General industrial automation systems
• Mid-range hydraulic pressure monitoring
• High-pressure pneumatic control circuits
• Industrial process control instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific port thread type (BSPP) against system requirements before ordering. Confirm that the 8V to 32V supply voltage aligns with available power sources. Ensure the 1V to 5V output signal matches the input range of the receiving controller or data acquisition system. Check compliance with IEC 61326-1 if electromagnetic compatibility is critical for the installation environment.

Pressure Sensors Transducers Selection Notes

Select this model when a hermetic seal is required for high-pressure industrial applications up to 400 bar. The analog voltage output simplifies integration with legacy PLCs or data loggers. Consider the ±1.5% accuracy tolerance for precision requirements. Evaluate the thermal range of -40°C to 100°C against ambient conditions. The robust design supports challenging measuring environments where standard sensors may fail.

Pressure Sensors Transducers Part Context

This component belongs to the PTE7100 series of hermetic analog pressure sensors. The series covers a wide measuring range from 0-50 bar to 0-600 bar. It is engineered for mid and high-pressure industrial applications. The series emphasizes durability and electrical isolation through hermetic sealing and high dielectric strength specifications.

Pressure Sensors Transducers Replacement Considerations

Cross-reference part numbers within the PTE7100 series for different pressure ranges or port types. Verify compatibility with existing mounting hardware due to the cylindrical threaded package. Ensure replacement units maintain the same hermetic rating and EMC performance levels.
