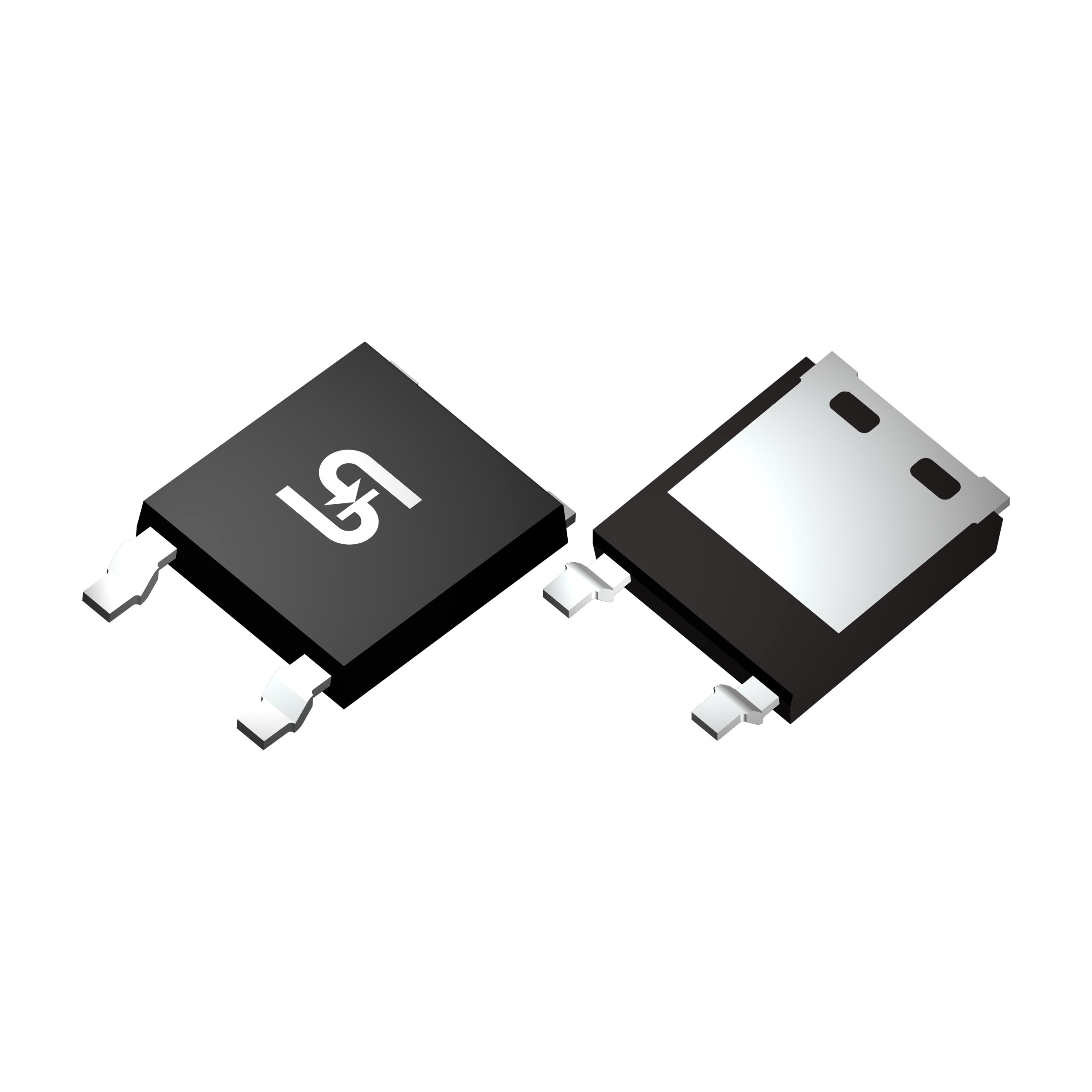

PUAD8BCH

$0.73

Description：DIODE ARRAY GP 100V 8A THINDPAK
Series：-

SKU:55b420c8c445 Category: Diode Arrays Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY GP 100V 8A THINDPAK
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：8A
Voltage - Forward (Vf) (Max) @ If：920 mV @ 4 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：25 ns
Current - Reverse Leakage @ Vr：2 µA @ 100 V
Operating Temperature - Junction：-55°C ~ 175°C
Mounting Type：Surface Mount
Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package：ThinDPAK
Grade：Automotive
Qualification：AEC-Q101

Download product information

PUAD8BCH

Overview

The PUAD8BCH is a dual common cathode ultra-fast recovery rectifier manufactured by Taiwan Semiconductor Corporation. It features a maximum repetitive peak reverse voltage of 100 V and an average forward rectified current of 4 A per diode. The device exhibits a typical reverse recovery time of 25 ns and a maximum reverse leakage current of 2 µA at 100 V. Forward voltage is specified at 850 mV when conducting 4 A. It operates within a junction temperature range of -55°C to +175°C and is housed in a Thin DPAK-2 (SMB) surface-mount package.

Feature Summary

Dual common cathode configuration for efficient bridge or center-tapped rectification
Ultra-fast recovery characteristics with 25 ns reverse recovery time
Automotive grade reliability certified under AEC-Q101 standards
High thermal stability supporting operation up to 175°C junction temperature

Applications

Automotive power supply circuits
DC-DC converter output rectification
Freewheeling diodes in inductive load switching
General purpose high-frequency rectification

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact electrical tolerances and packaging variations. Ensure compatibility with AEC-Q101 automotive qualification requirements if deploying in vehicle systems. Cross-reference datasheet parameters for thermal resistance and surge current ratings prior to integration into final designs.

Selection Notes

Select this component for applications requiring fast switching speeds and robust automotive-grade performance. The dual common cathode arrangement simplifies circuit topology compared to discrete single-diode solutions. Evaluate thermal management needs based on the SMB package constraints and expected operating currents to ensure reliable long-term operation.

Part Context

This part belongs to the PUAD series of ultra-fast recovery rectifiers from Taiwan Semiconductor. The series offers various voltage and current ratings in compact surface-mount packages designed for high-efficiency power conversion. The PUAD8BCH specifically targets low-voltage, moderate-current applications requiring rapid recovery times.
