PXP2.3G

Pressure Sensors Transducers Overview

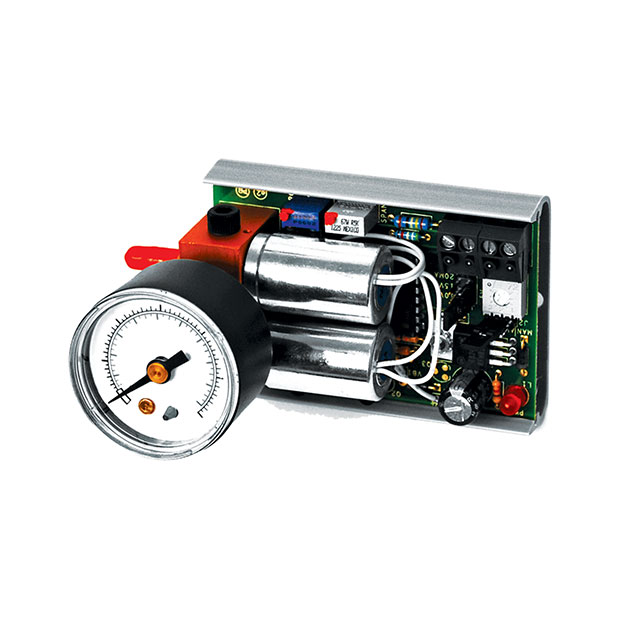

The PXP2.3G is an electro-pneumatic signal converter manufactured by Automation Components, Inc. It accepts a 0-5VDC analog input and generates a proportional pneumatic output ranging from 0 to 15 PSI. The device operates on a nominal supply voltage of 24VAC/DC and features an accuracy of ±1% full scale. It utilizes a female 1/8 inch NPT port size for pneumatic connections. The unit includes dual valves and maintains branch pressure without bleed.

Pressure Sensors Transducers Feature Summary

• Converts low-voltage electrical signals into proportional pneumatic pressure
• Maintains stable branch pressure through integrated dual valve mechanism
• Designed for snap track mounting in industrial control environments

Pressure Sensors Transducers Applications

• HVAC building automation systems
• Industrial process control instrumentation
• Signal conditioning between electronic controllers and pneumatic actuators

Pressure Sensors Transducers Procurement Notes

Verify the specific output range and input signal compatibility against project requirements before procurement. Confirm that the 24VAC/DC supply voltage matches existing infrastructure. Ensure the 1/8 inch NPT connection fits the pneumatic tubing system. Check RoHS compliance status if environmental regulations apply to the installation site.

Pressure Sensors Transducers Selection Notes

Select this model when an analog voltage signal must drive a pneumatic actuator with high accuracy. The dual valve design supports applications requiring precise pressure maintenance. Consider the snap track mounting option for ease of integration into standard control panels. Verify that the 0-15 PSI output range aligns with the downstream device specifications.

Pressure Sensors Transducers Part Context

This component belongs to the ACI signal converter family designed for industrial automation. It bridges the gap between electronic control systems and pneumatic execution devices. The product line emphasizes reliability and precision in harsh industrial environments. It serves as a critical interface in systems requiring mixed signal processing.

Pressure Sensors Transducers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the input/output ranges and mounting style.
