QPC2110SR

Overview

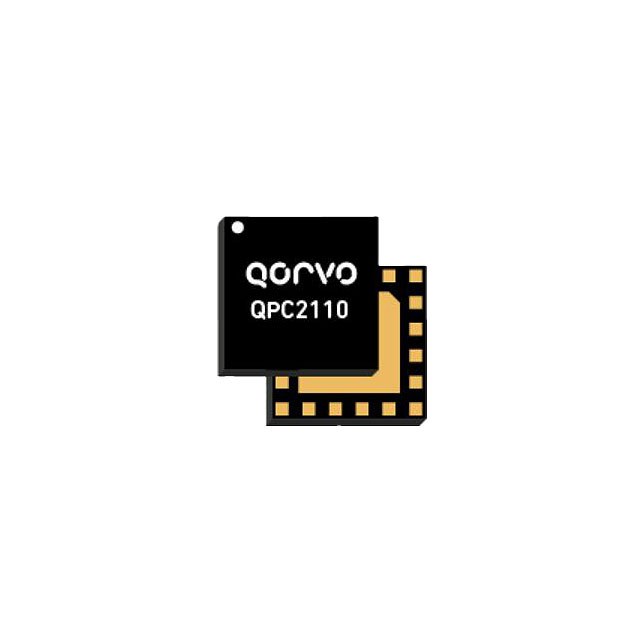

The QPC2110SR is a packaged Silicon-on-Insulator (SOI) 6-bit digital phase shifter manufactured by Qorvo. It operates within the X-band frequency range of 8 GHz to 11.5 GHz, providing continuous 360-degree phase coverage with a least significant bit (LSB) resolution of 5.625 degrees. The component is housed in a compact QFN-20 surface-mount package and requires a 3.3 V operating supply voltage. Designed for high-performance RF applications, it integrates advanced SOI technology to ensure reliable signal phase control across its specified bandwidth.

Feature Summary

• Utilizes Silicon-on-Insulator (SOI) technology for enhanced performance
• Provides precise 6-bit digital phase control
• Delivers full 360-degree phase coverage
• Features a compact QFN-20 surface-mount package

Applications

• Phased array antenna systems
• X-band radar subsystems
• Satellite communication terminals

Procurement Notes

Verify the specific suffix SR against official Qorvo documentation to confirm reel packaging specifications. Ensure compatibility with standard SMD/SMT assembly processes given the QFN-20 footprint. Confirm moisture sensitivity levels and reflow soldering profiles prior to manufacturing integration. Cross-reference the Mouser part number 772-QPC2110SR with the manufacturer's current datasheet to validate active status and lead time requirements.

Selection Notes

Select the QPC2110SR when designing systems requiring precise phase shifting in the 8–11.5 GHz range. The SOI construction offers distinct advantages for integration density and isolation compared to traditional technologies. Consider the QFN-20 package constraints for PCB layout and thermal management. Evaluate the 3.3 V supply requirement against system power budgets. This component is suitable for applications demanding high linearity and low insertion loss in X-band environments.

Part Context

The QPC2110SR belongs to Qorvo’s portfolio of RF integrated circuits focused on microwave and millimeter-wave solutions. As a member of the QPC series, it represents specialized components designed for advanced wireless infrastructure. The device leverages proprietary SOI processes to achieve superior electrical characteristics. It serves as a critical element in modern RF front-end designs where accurate beamforming and signal steering are essential.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
